WEST P4100 - Connections and Wiring; Figure 11. Rear Terminals ( 1; 16 -DIN Instruments)

1
/
4
-DIN,
1
/
8
-DIN &
1
/
16
- DIN Controllers & Indicators - Product Manual
59305, Issue 5 – March 2005 Connections Page 15
Connections and Wiring
The rear terminal connections for
1
/
16
DIN and
1
/
4
&
1
/
8
DIN instruments are illustrated in the
following diagrams.
In general, all wiring connections are made to the instrument after it is installed. Copper wires
must be used for all connections (except thermocouple signal wires).
WARNING:
TO AVOID ELECTRICAL SHOCK, AC POWER WIRING MUST NOT BE CONNECTED TO THE
SOURCE DISTRIBUTION PANEL UNTIL ALL WIRING PROCEDURES ARE COMPLETED.
WARNING:
CHECK THE INFORMATION LABEL ON THE CASE TO DETERMINE THE CORRECT
VOLTAGE BEFORE CONNECTING TO A LIVE SUPPLY.
Note:
The wiring diagram below shows all possible combinations. The actual connections
required depend upon the features available on the model and the modules and options
fitted.

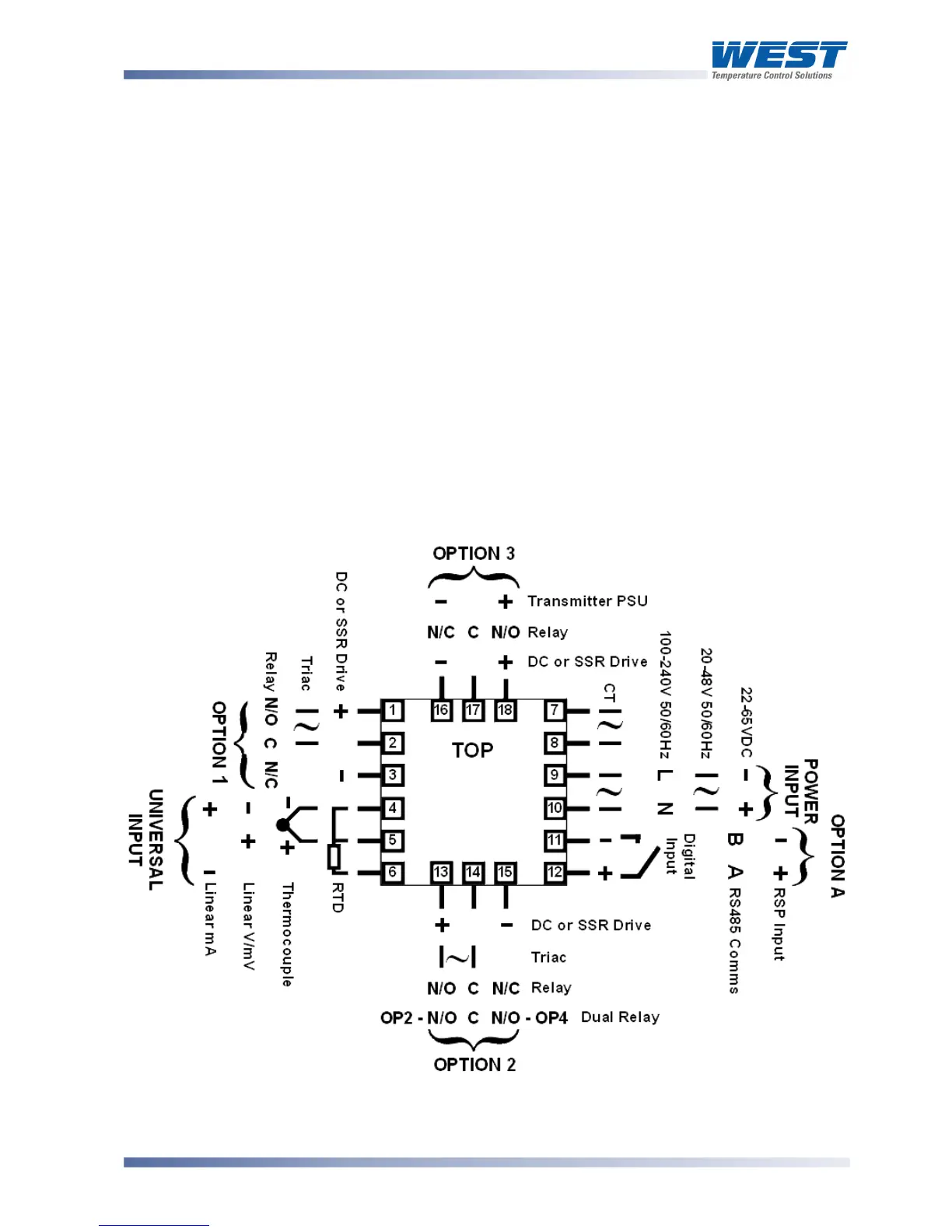

Figure 11. Rear terminals (
1
/
16
-DIN Instruments)
