WPS-300-DVR-9CH & 16CH Installation and Users Manual
3.2. CONNECTIONS
To ensure proper performance and operation of the 300 DVR, it is recommended that all connections
and setup be performed by a qualied system installer.

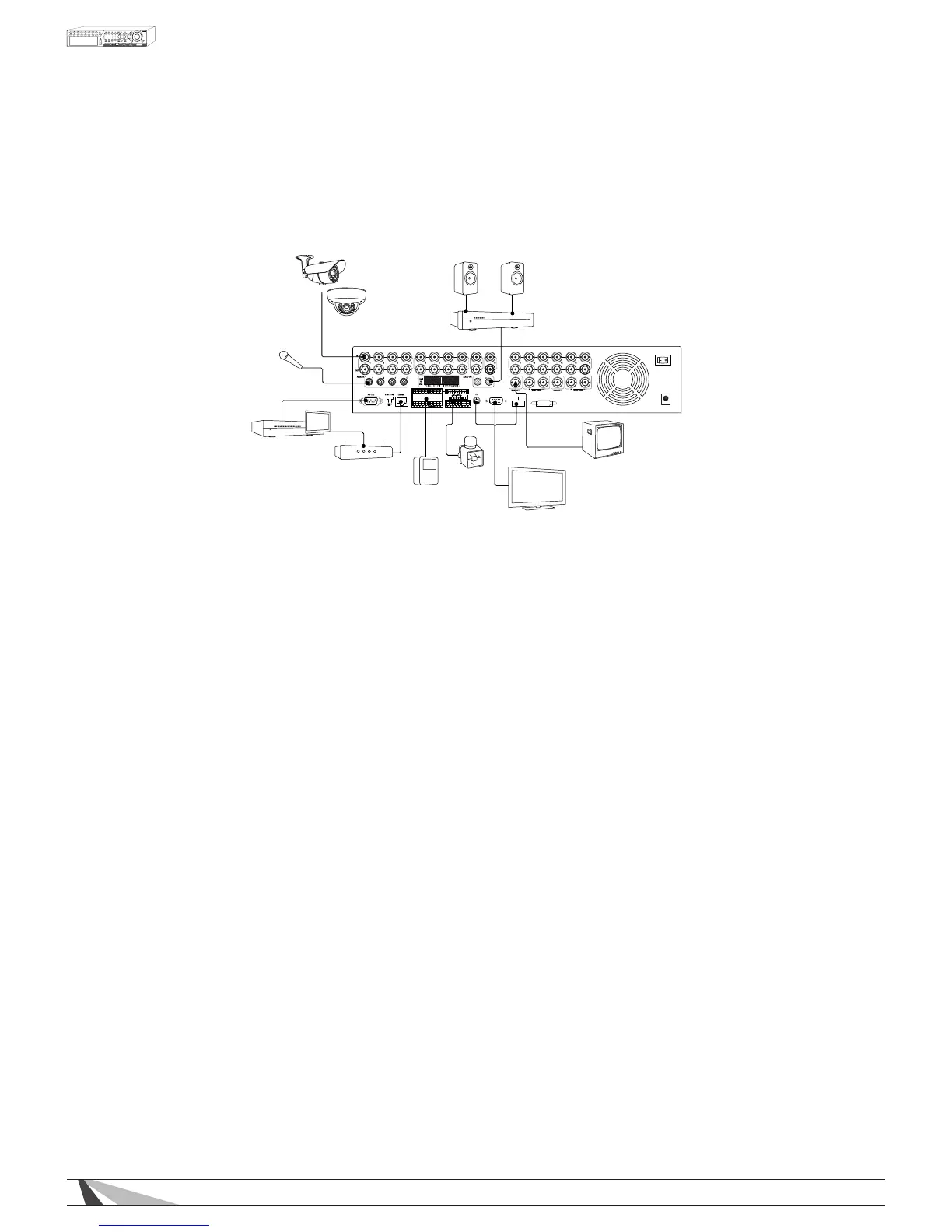

3.2.1. BASIC CONNECTIONS
Amplifier
Router
WPS-300 Series DVR
Automation System
Motion Sensor(s)
Siren
LCD Monitor/Flat Panel TV
CRT Monitor
Camera(s)
Microphone
Speakers
VGA
HDMI
ESATA
ALARM
OUT
G
G
G
G
-
+
G
RS-485
C
DC12V
POWER
 •POWER
Connect the included External Power Supply to surge protection or wall outlet.
•CAMERAS
Connect the video output from cameras or other composite video sources using coaxial cable to the
Video In connectors. Set each of the DIP switches to ON unless the corresponding video output terminal is
connected.
 •MAINMONITOR/VGAOUTPUT
Connect the Main Monitor BNC to a surveillance TV monitor
Connect the Main Monitor VGA output to a VGA monitor or Flat Panel TV
Connect the Main Monitor HDMI Output to HD Flat Panel TV.
Main Monitor Notes
   1.ForHDMIcompatibility,conrmthatthedisplaywillsupportaPCresolutionof1024x768at60Hz.Some
olderTVsandlowergradeTVsdonotsupportthisresolution.SomemodelTVsonlysupportthisresolution
ononeoftheHDMIinputs.CheckthemanualforthespecicationsoftheTV.AgoodindicatorisaVGA
connectionontheTV.
   2.TheDVRwillscaletheimagetotheHDMIconnection,thiscancausethecompositeoutput(BNC)to
“overscan”andcutofftheedgesoftheimage.
   3.TheHDMIconnectionmustbeconnectedpriortoturningDVRoninordertoactivatetheHDMIout
put connection.
3.2.2. OPTIONAL CONNECTIONS
 •AUDIOINPUT
Connect the audio input connector to the audio line-out from line level microphones or other audio
sources. Please make sure to associate the audio inputs with a camera in the Camera Setup as described
in Section 6.2 accordingly. An audio input can only be associated with one camera.
 •AUDIOOUTPUT
Connect the audio output connector to an amplier and speakers.
 •ALARMINPUTS
Connect the alarm inputs to NC and/or NO sensors or security alarm panel relays. Please make sure to
setup the alarm congurations as described in Section 6.3 accordingly.
