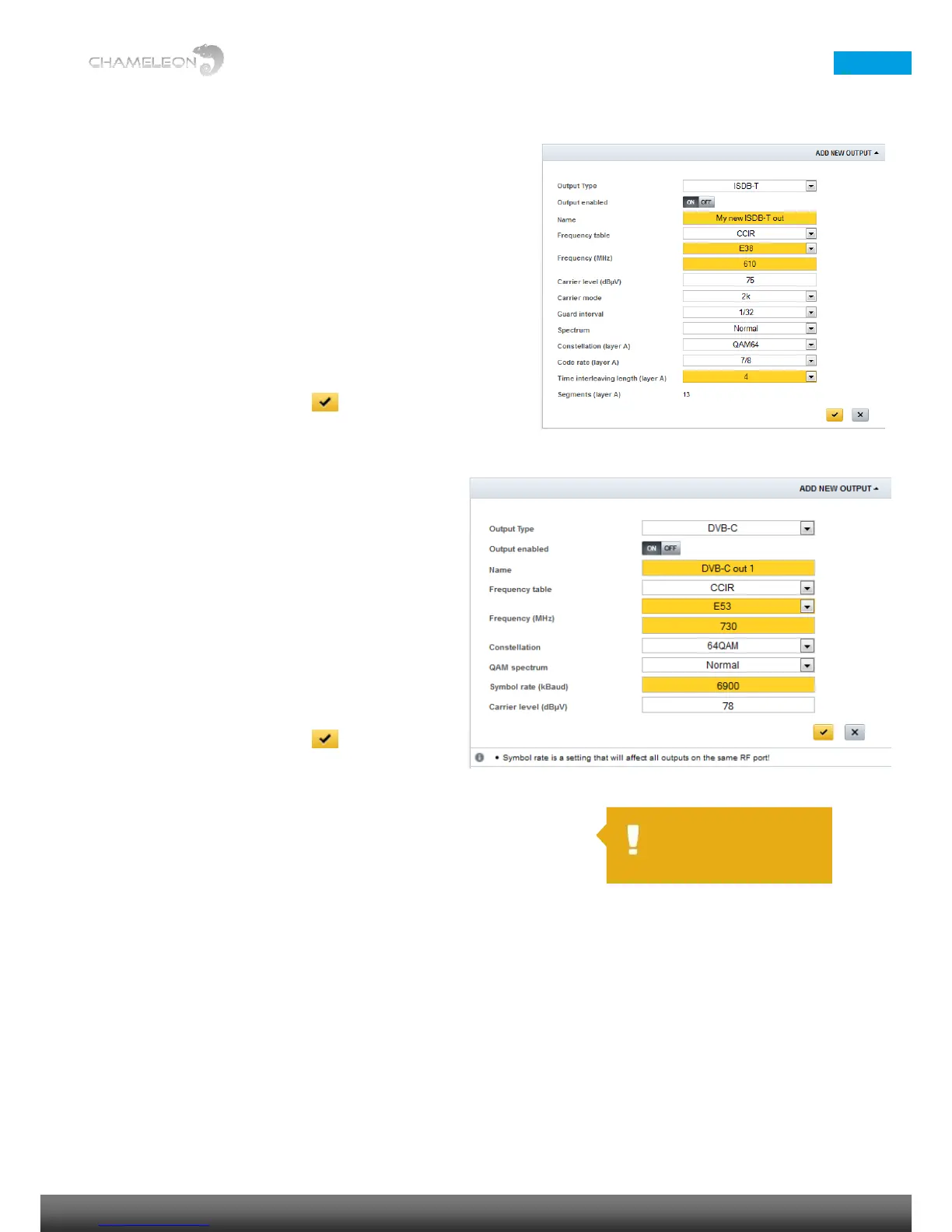

Add ISDB-T output
In OPERATION MODE under Settings, select ISDB-T mode
1. In the Output, select DTMB in the Output Type list
2. Enter a name for the output
3. Select Frequency table [CCIR, OIRT]
4. Select output channel, or set the output frequency in MHz
5. Set the Carrier level
6. Select the Carrier mode [2k, 4k, 8k]
7. Select the Guard Interval [1/4, 1/8, 1/16, 1/32]
8. Select the Spectrum [Normal, Inverted]
9. Select the Constellation (layer A) [DQPSK, QPSK, QAM 16,
QAM64]
10. Select the Code rate (layer A) [1/2, 2/3, 3/4, 5/6, 7/8]
11. Select the Time interleaving length (layer A) [0, 4, 8, 16]
12. Click the “yellow tick” to save the settings.
Add DVB-C outputs
Select Operation mode DVB-C under Settings
1. In the Output, select DVB-C in the drop down
list for Output Type
2. Enter a name for the output
3. Select Frequency table [CCIR, OIRT]
4. Select output channel, or set the output
frequency in MHz
5. Select Constellation [16QAM, 32QAM,
64QAM, 128QAM, 256QAM]
6. Select QAM spectrum [Normal, Inverted]
7. Set the Symbol rate (kBaud)
8. Set the output Carrier level (dBµV)
9. Click the “yellow tick” to save the
settings.
Channel bonding. All output
muxes within 40 MHz band
(5 channels @ 8 MHz)
