General Procedures and Information
6-6 04/08 Phaser 3100 MFP

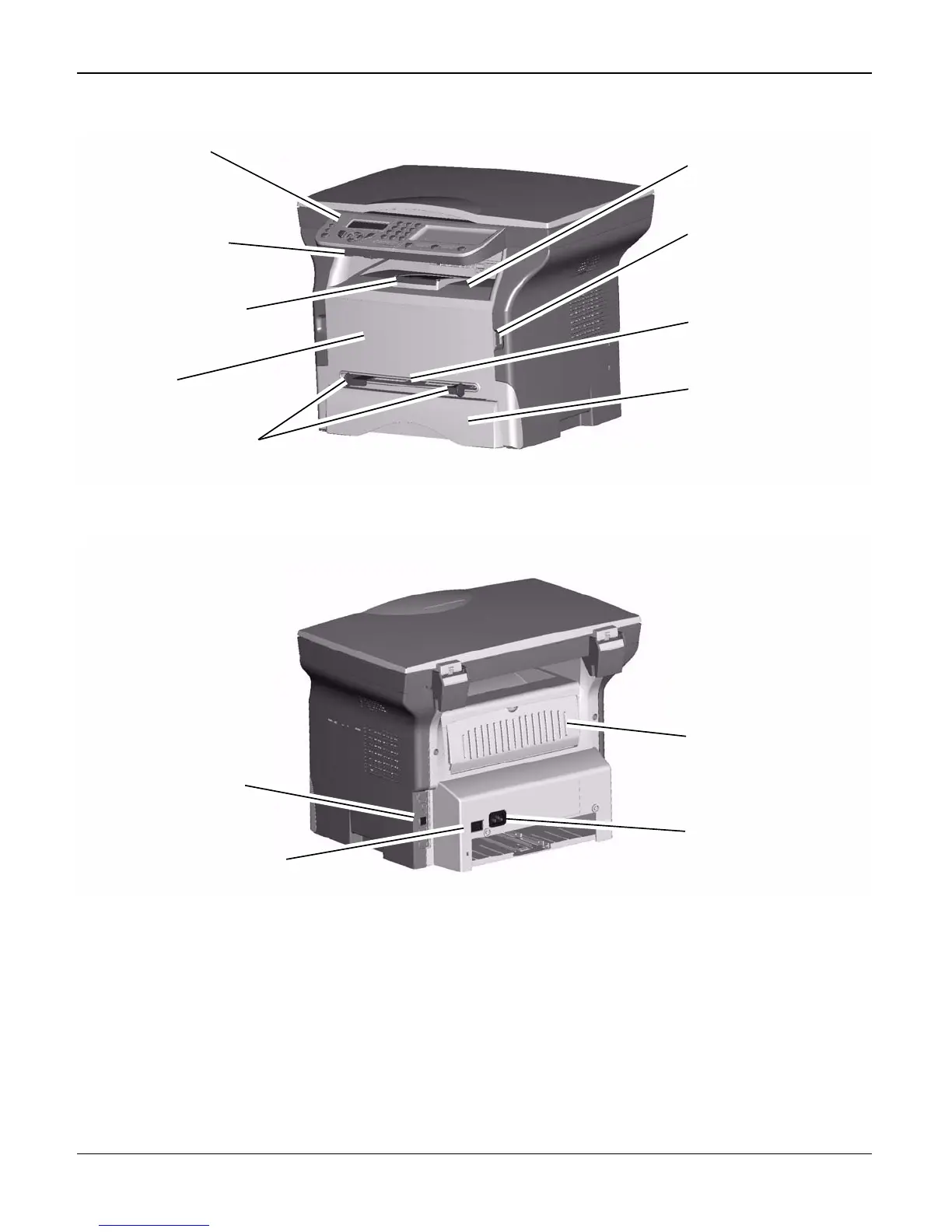

Figure 3
Figure 4
Paper output
Master USB connection
(USB key)
Manual input tray
Paper tray
Manual paper feed setup
guides
Front cover
Output support tab
Smart card insertion
point
Control panel
Slave USB connection
(For PC)
Paper jam cover
Power supply cable
connection
On/Off switch
