General Procedures and Information
Phaser 3100 MFP 04/08 6-15
Power Supply
The 24V and 5V power supply are provided by the printer.

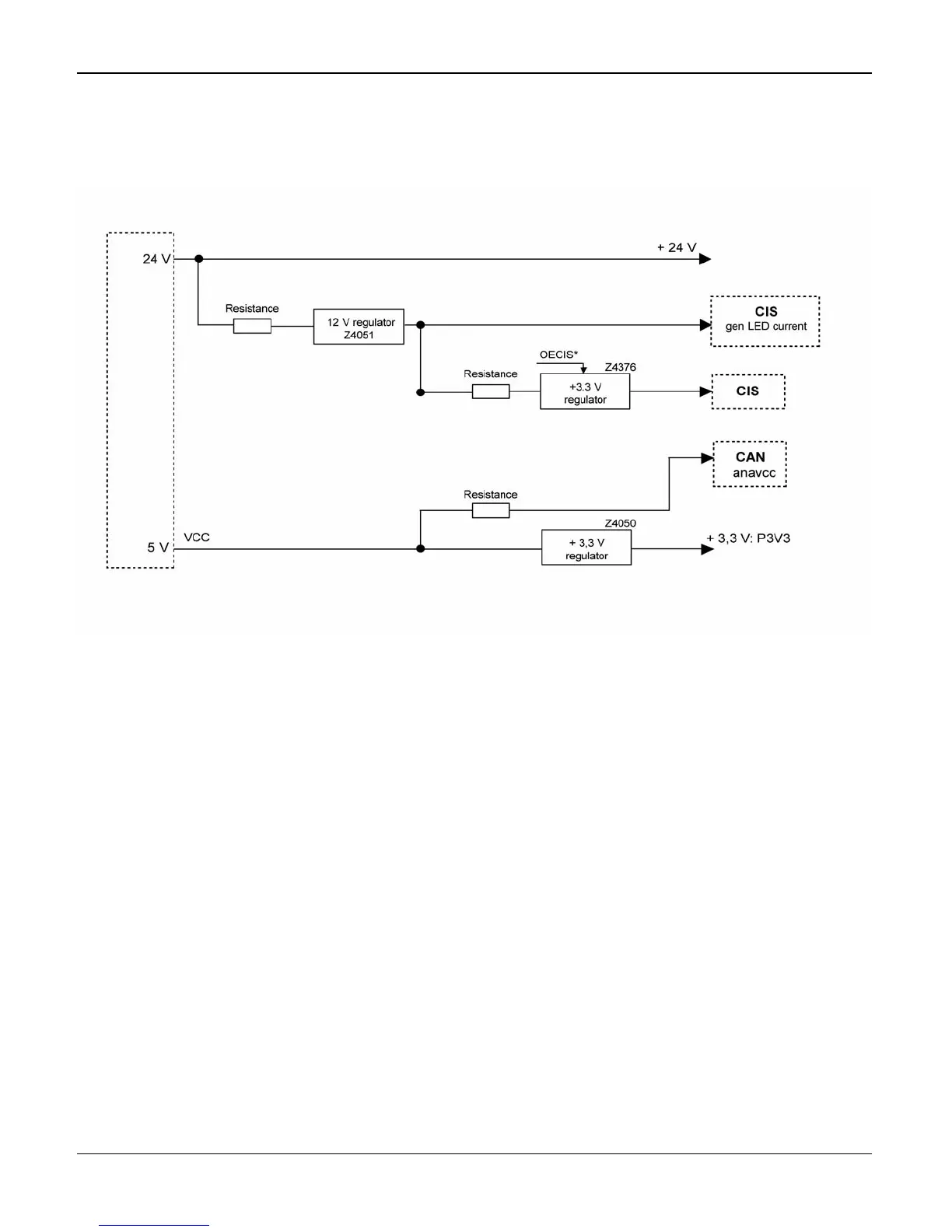

Figure 3 Diagram of printer power supply connections:
