Repairs and Adjustments
4-50 04/08 Phaser 3100 MFP
REP 21 CIS Support
Parts List on: PL 6
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
Preparation
• Remove the ADF cover, REP 2.
• Remove the front door and the side covers, REP 3.
• Remove the CPU shield plate, REP 11.
• Remove the platen assembly, REP 16
.
Removal

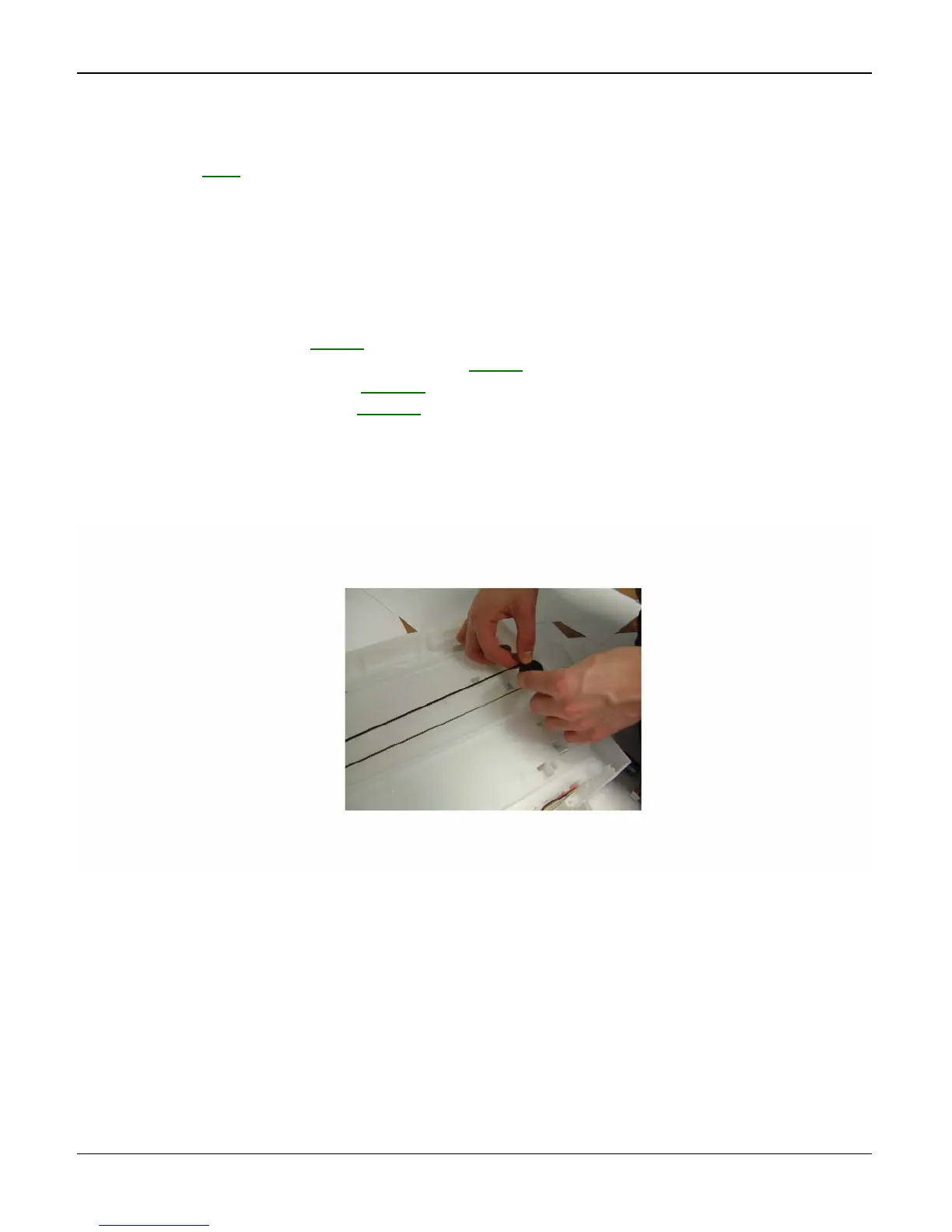

1. Lift the CIS drive pulley and the drive to remove the CIS drive pulley from its slot, Figure 1.
Figure 1
