Xerox Phaser 3100MFP Service Manual

General Procedures and Information
6-58 04/08 Phaser 3100 MFP

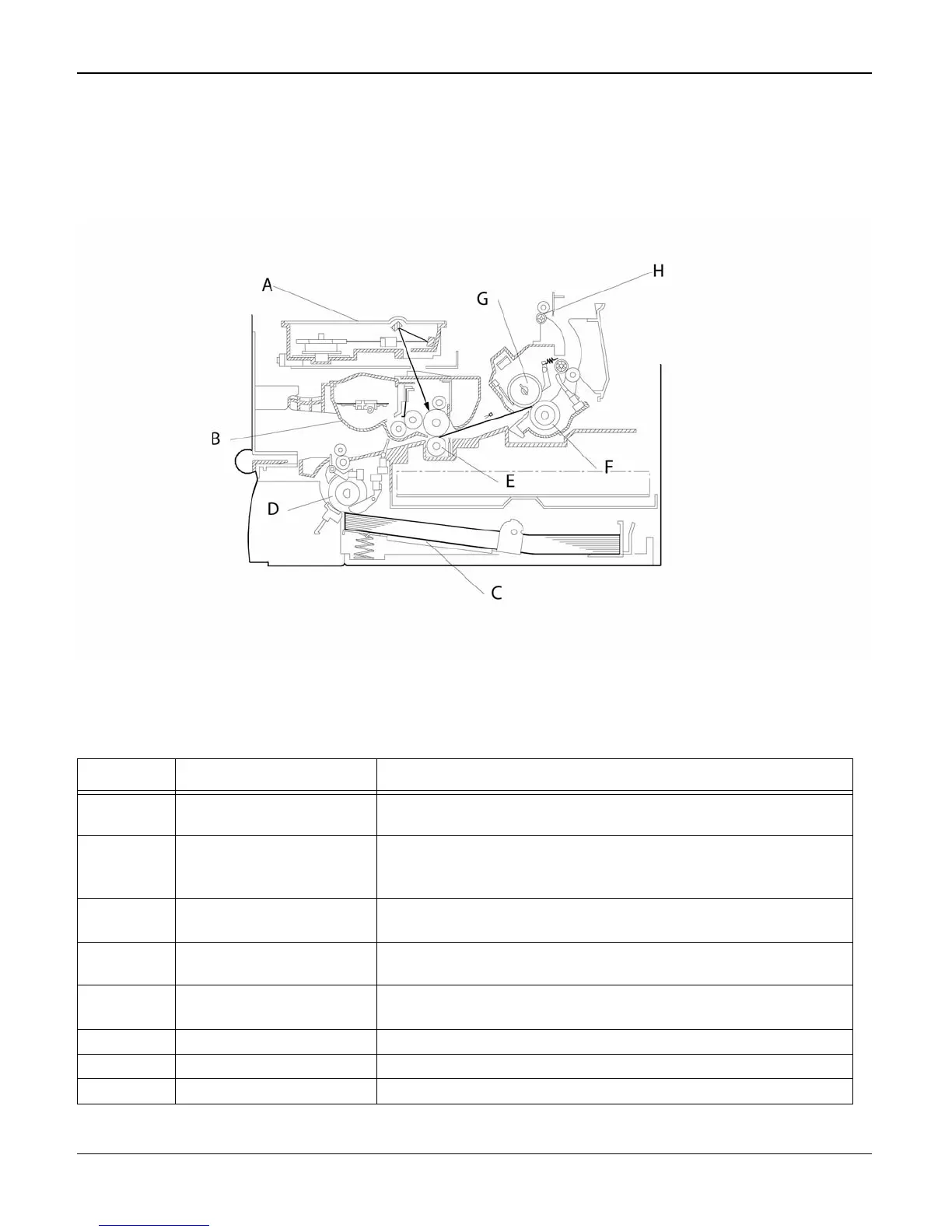

GP 18 Component Layout
Mechanical Components
Figure 1
Table 1:
No. Name Description
A Laser Unit Consists of the laser diode unit, cylindrical lens, f-theta lens, poly-
gon mirror motor, and other laser optical components.
B Toner Cassette Consists of the OPC drum, toner, toner application roller, develop-
ment roller, charge brush roller, cleaning blade, and other develop-
ment components.
C Upper Tray Bottom Plate Presses paper stacked in the upper paper tray against the paper
feed roller.
D Paper Feed Roller Picks up the top sheet of paper from the stack in the upper paper
tray and feeds it into the transfer area.
E Transfer Roller Applies a charge to the paper to pull the toner off the drum and onto
the copy paper.
F Pressure Roller Applies pressure to the paper during fusing.
G Heat Roller Fuses the toner to the copy paper.
H Paper Exit Roller Feeds the paper out of the printer.

Xerox Phaser 3100MFP Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Capacity	250 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Copy Speed (Black)	20 cpm
Print Speed	Up to 20 ppm
