Xerox Phaser 3100MFP Service Manual

Repairs and Adjustments
Phaser 3100 MFP 04/08 4-89
REP 37 Discharge Lamp Assembly
Parts List on: PL 11
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
Preparation
• Remove the fusing unit, REP 25.
Removal
1. Remove the discharge lamp assembly, Figure 1.

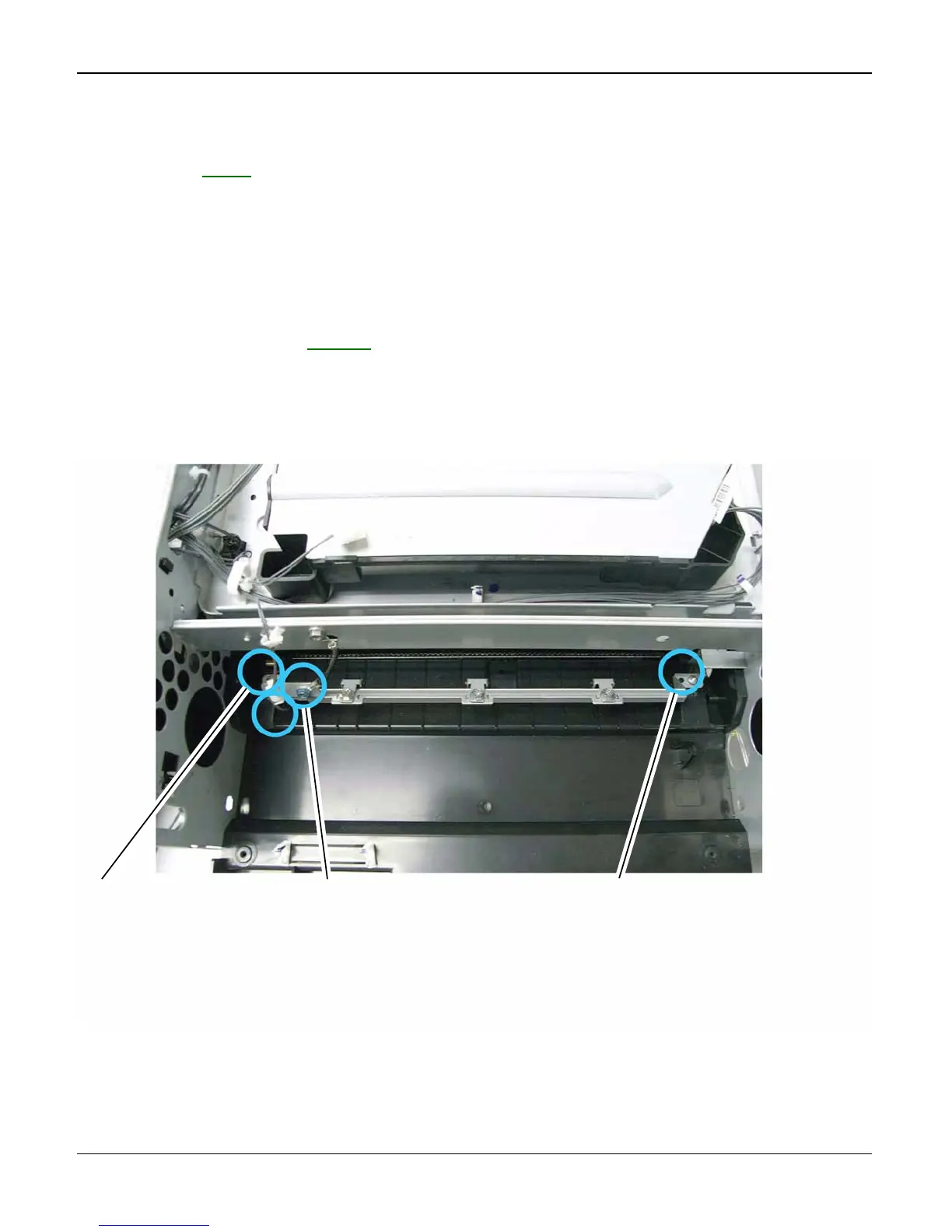

Figure 1
1
Remove 1 screw to release the
ground harness
2
Disconnect the discharge
lamp harness
3
Remove 1 screw at each end
to release the discharge lamp
assembly
