Xerox Phaser 3100MFP Service Manual

Repairs and Adjustments
Phaser 3100 MFP 04/08 4-5
REP 2 ADF Cover and Document Pad
Parts List on: PL 7
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
Preparation
• None.
Removal
Document Pad:
1. Raise the ADF.
2. Remove the document pad located on the underside of the ADF, Figure 1.

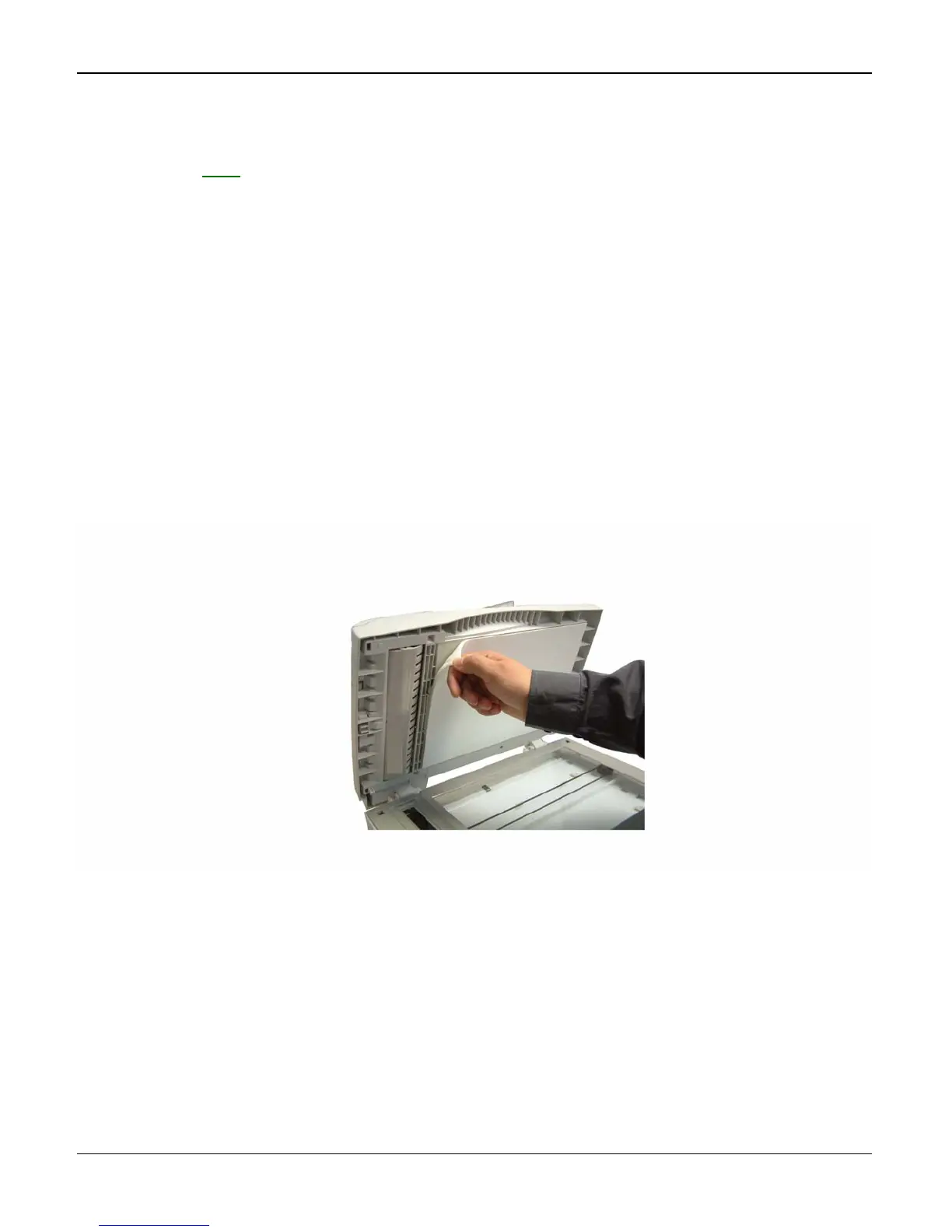

Figure 1
