Repairs and Adjustments
4-86 04/08 Phaser 3100 MFP
REP 35 Fan Assembly
Parts List on: PL 13
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
Preparation
• Remove the output tray assembly, REP 14
Removal
1. Remove the fan assembly

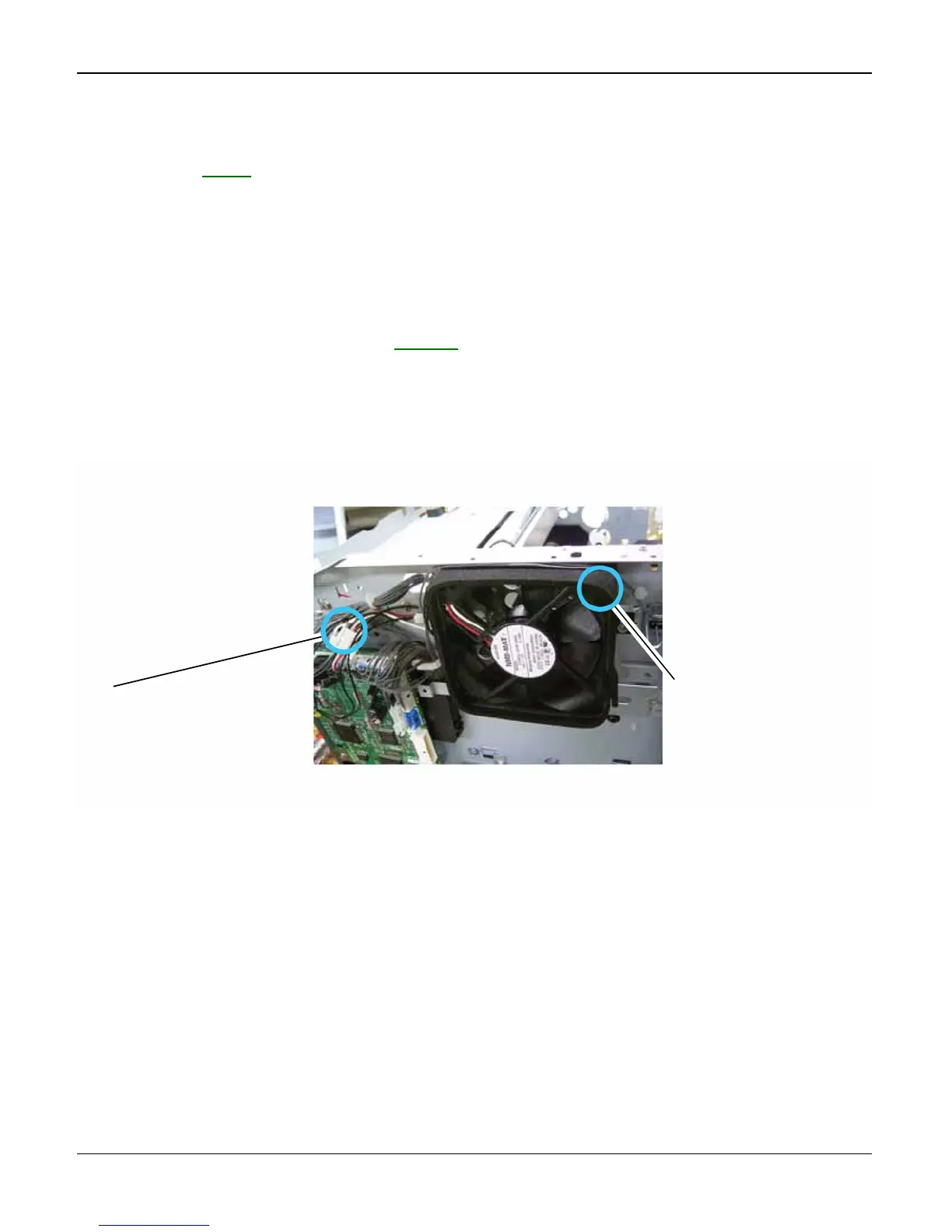

Figure 1
Replacement
1. Replacement is the reverse of the removal procedure.
1
Disconnect the harness
2
Remove 1 screw to re-
lease the fan assembly
