Xerox Phaser 3100MFP Service Manual

Repairs and Adjustments
4-22 04/08 Phaser 3100 MFP
REP 8 Motor Frame
Parts List on: PL 8
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
Preparation
• Remove the feeder assembly, REP 4.
• Remove the document feed assembly, REP 6.
Removal
1. Unscrew the mounting screw of the motor frame, Figure 1.

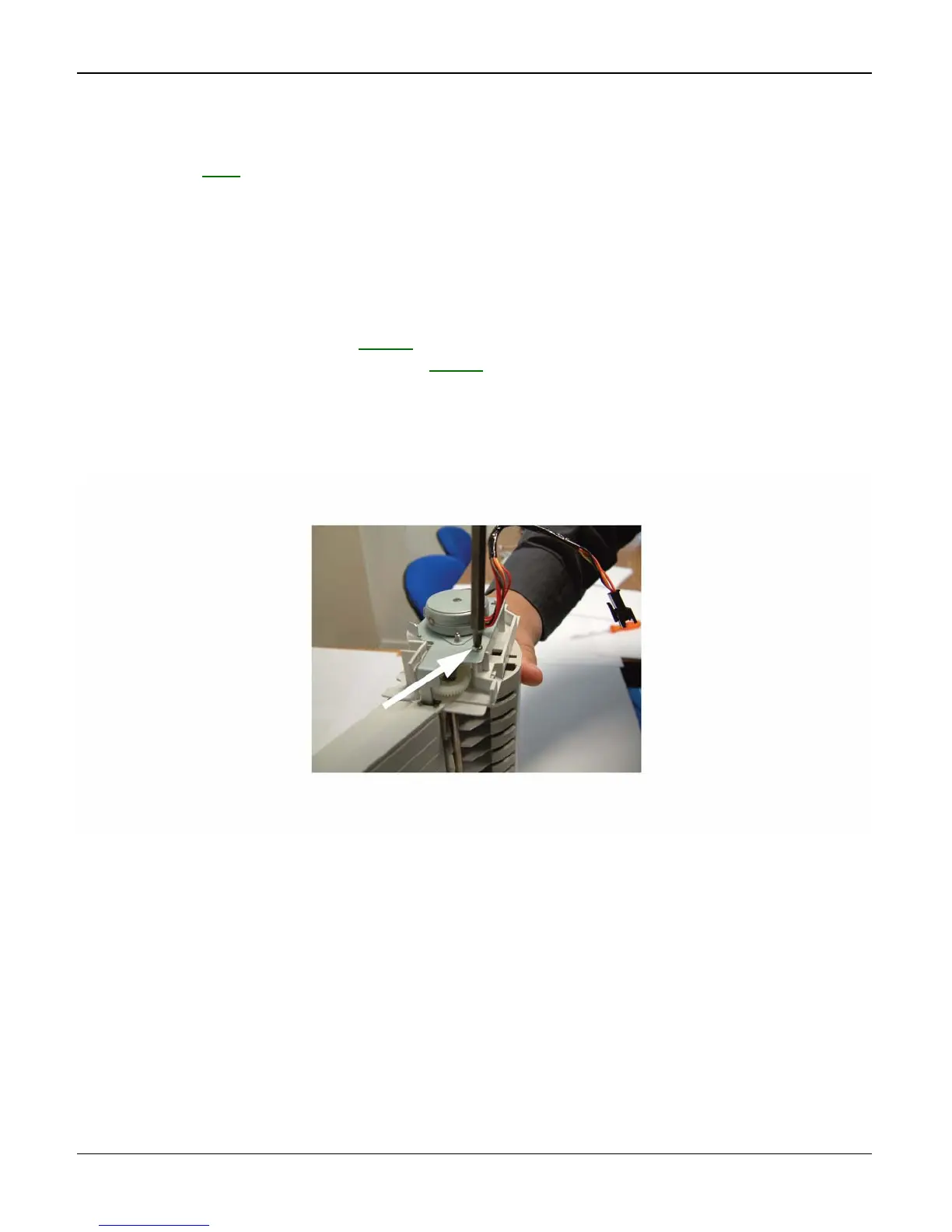

Figure 1
