Xerox Phaser 3100MFP - REP 23 Paper Tray Components

Repairs and Adjustments
4-54 04/08 Phaser 3100 MFP
REP 23 Paper Tray Components
Parts List on: PL 10
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
Preparation
None.
Removal
1. Remove the paper tray, Figure 1.

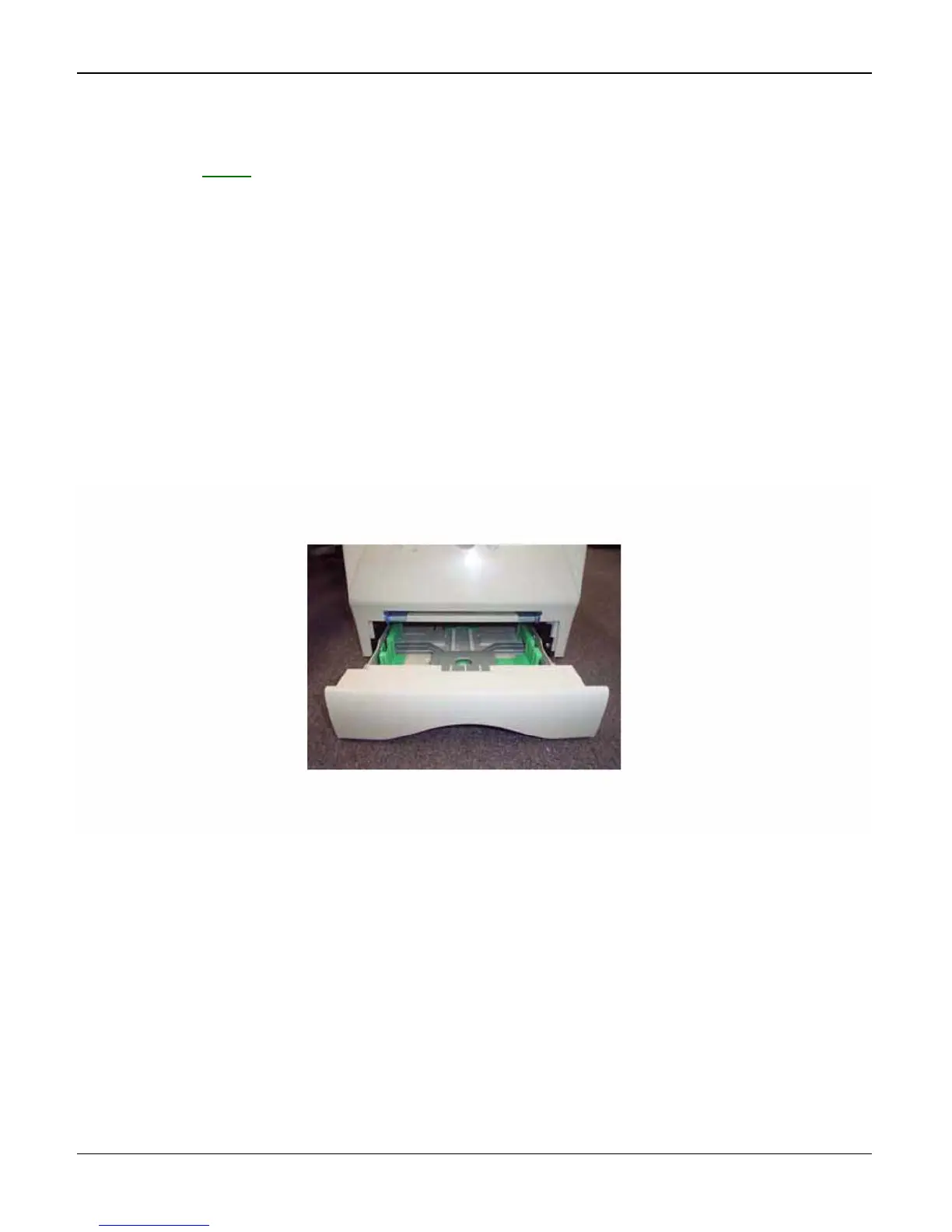

Figure 1
