Repairs and Adjustments
Phaser 3100 MFP 04/08 4-53

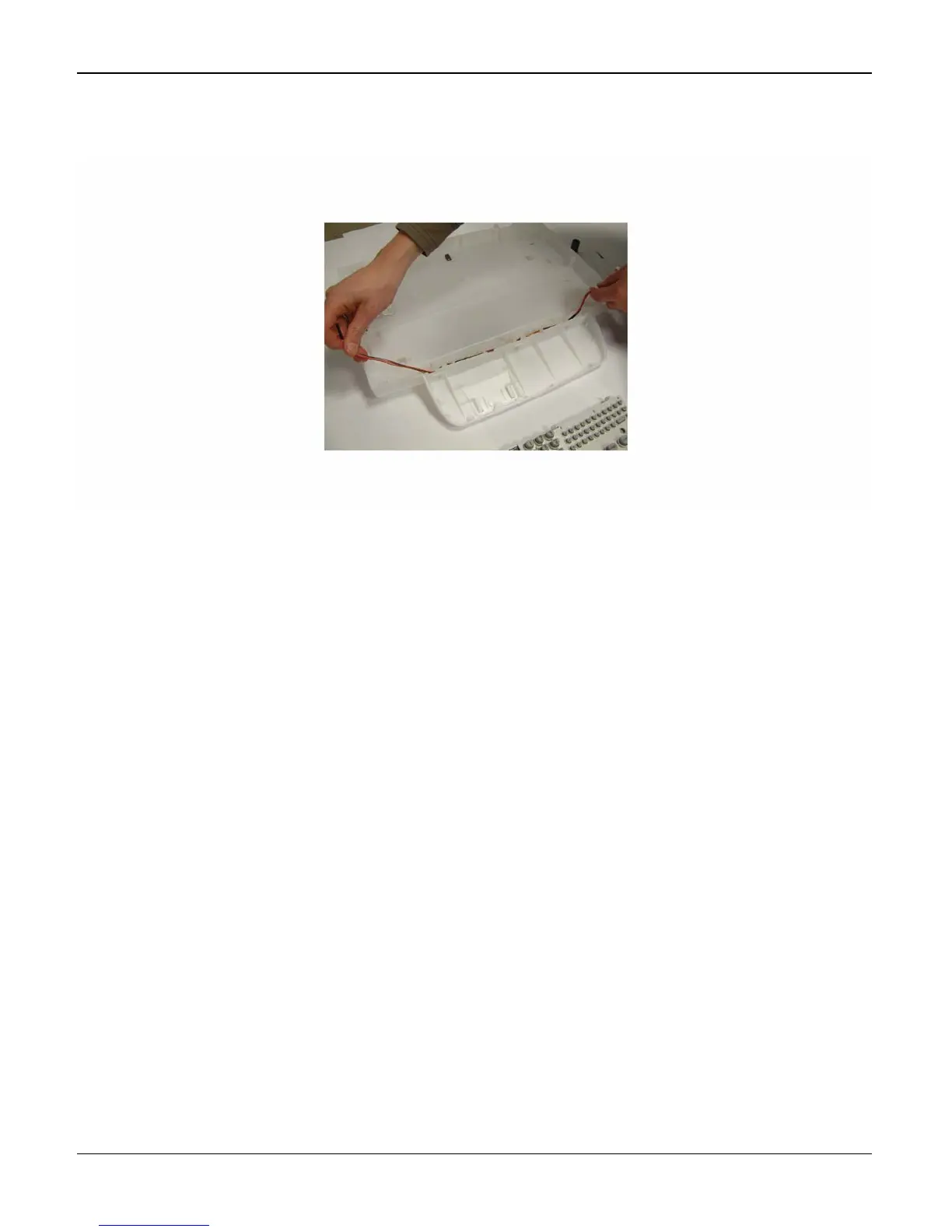

3. Remove the CIS motor connector from its cable guide, Figure 2.
Figure 2
4. Remove the scanner motor.
Replacement
1. Replacement is the reverse of the removal procedure.
