Repairs and Adjustments
Phaser 3100 MFP 04/08 4-61
REP 25 Fusing Unit
Parts List on: PL 12
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
WARNING
Do not touch the fuser while it is hot.
Preparation
• Remove the output tray assembly, REP 14
Removal

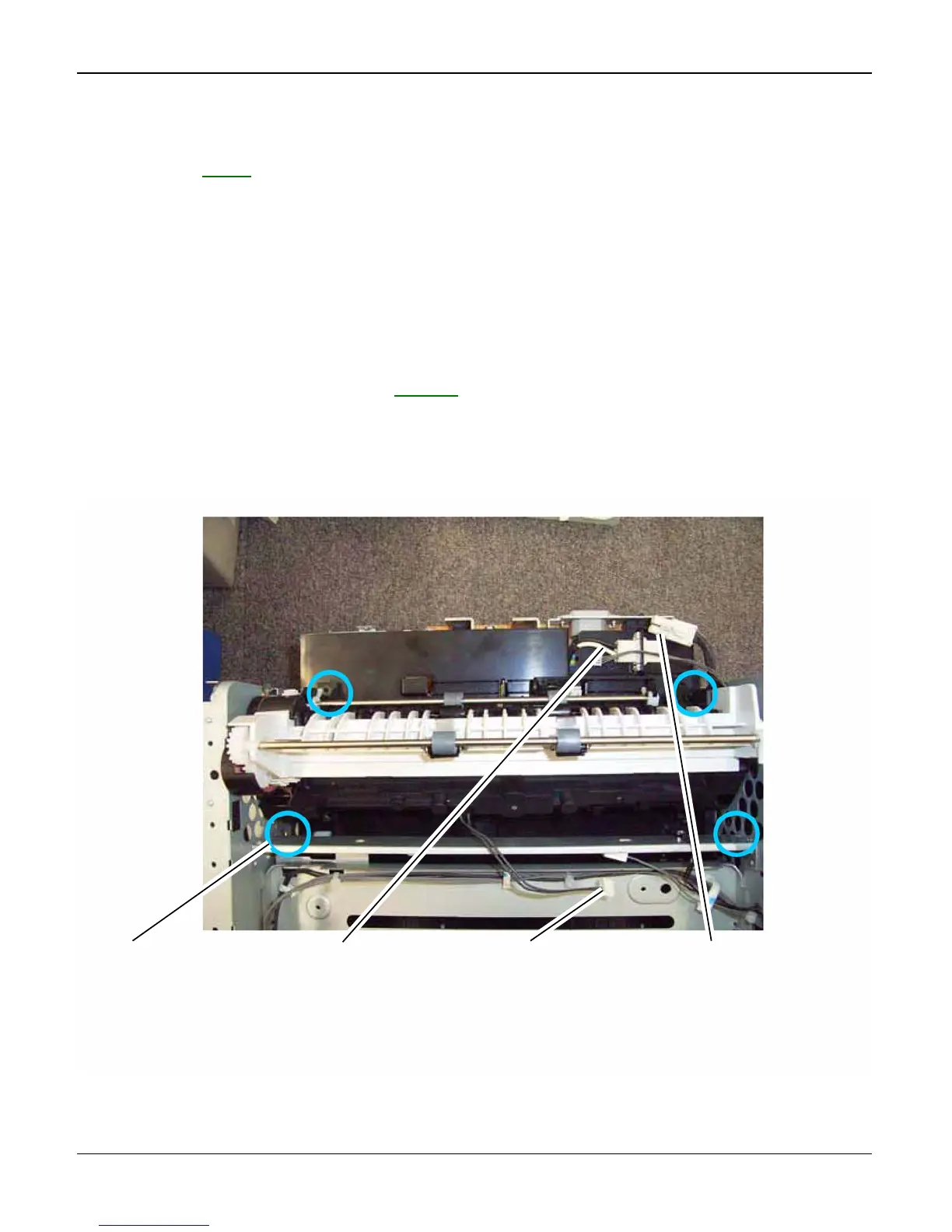

1. Remove the fusing unit, Figure 1.
Figure 1
1
Disconnect the
thermistor harness
2
Disconnect the paper
exit sensor harness
3
Disconnect the fusing
lamp harness
4
Remove 4 screws
(circled in blue) to
remove the fusing
unit
To Next Page
