Xerox Phaser 3100MFP Service Manual

Repairs and Adjustments
4-20 04/08 Phaser 3100 MFP
REP 7 Upper Paper Guide Assembly
Parts List on: PL 8
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
Preparation
• Remove the feeder assembly, REP 4.
Removal
1. Open the ADF cover.

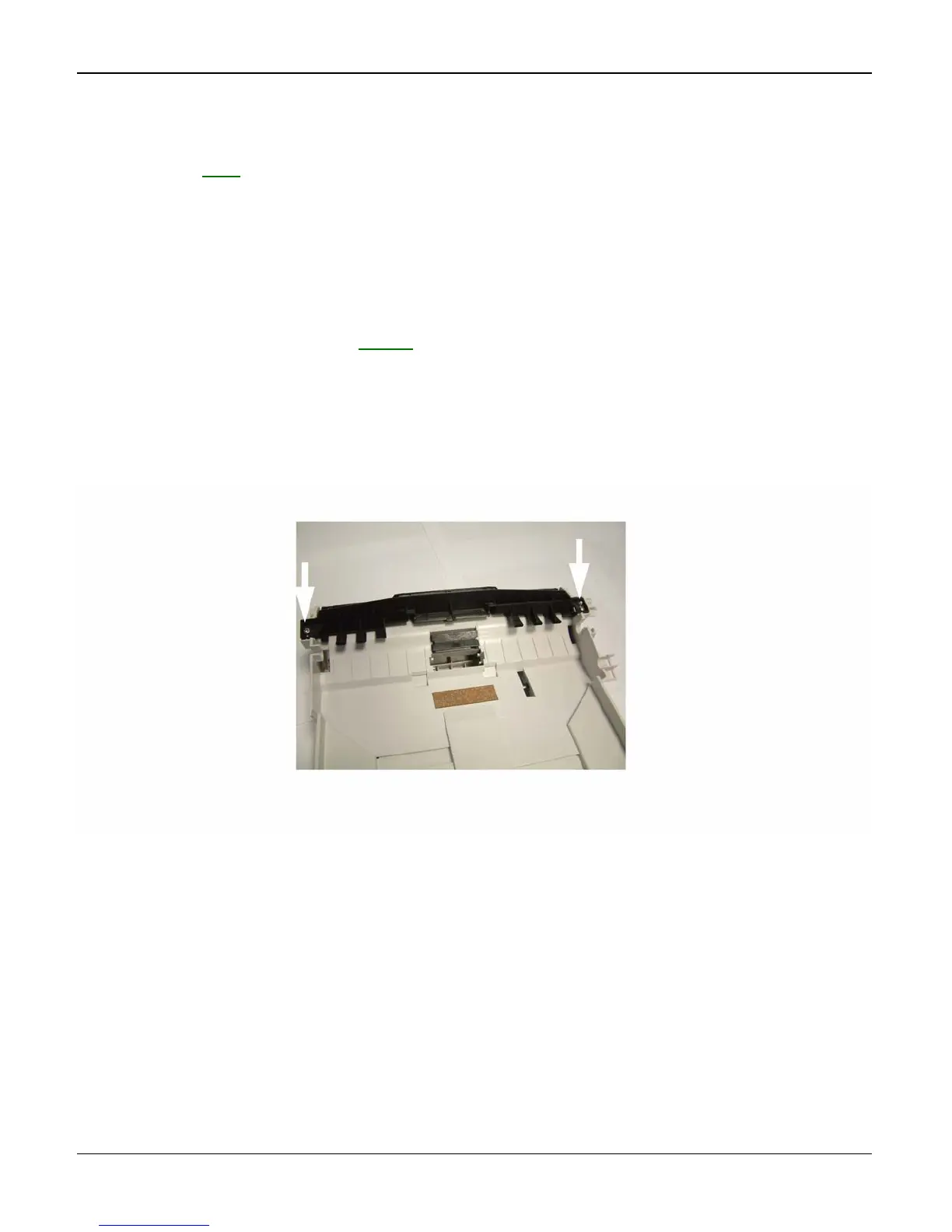

2. Unscrew the two mounting screws of the paper guide assembly, Figure 1.
Figure 1
