Repairs and Adjustments
4-10 04/08 Phaser 3100 MFP
REP 3 Front Door and Side Cover
Parts List on: PL 2
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
Preparation
• None.
Removal
Front Door:
1. Push the left and right side of the printer front door and simultaneously pull it forward.

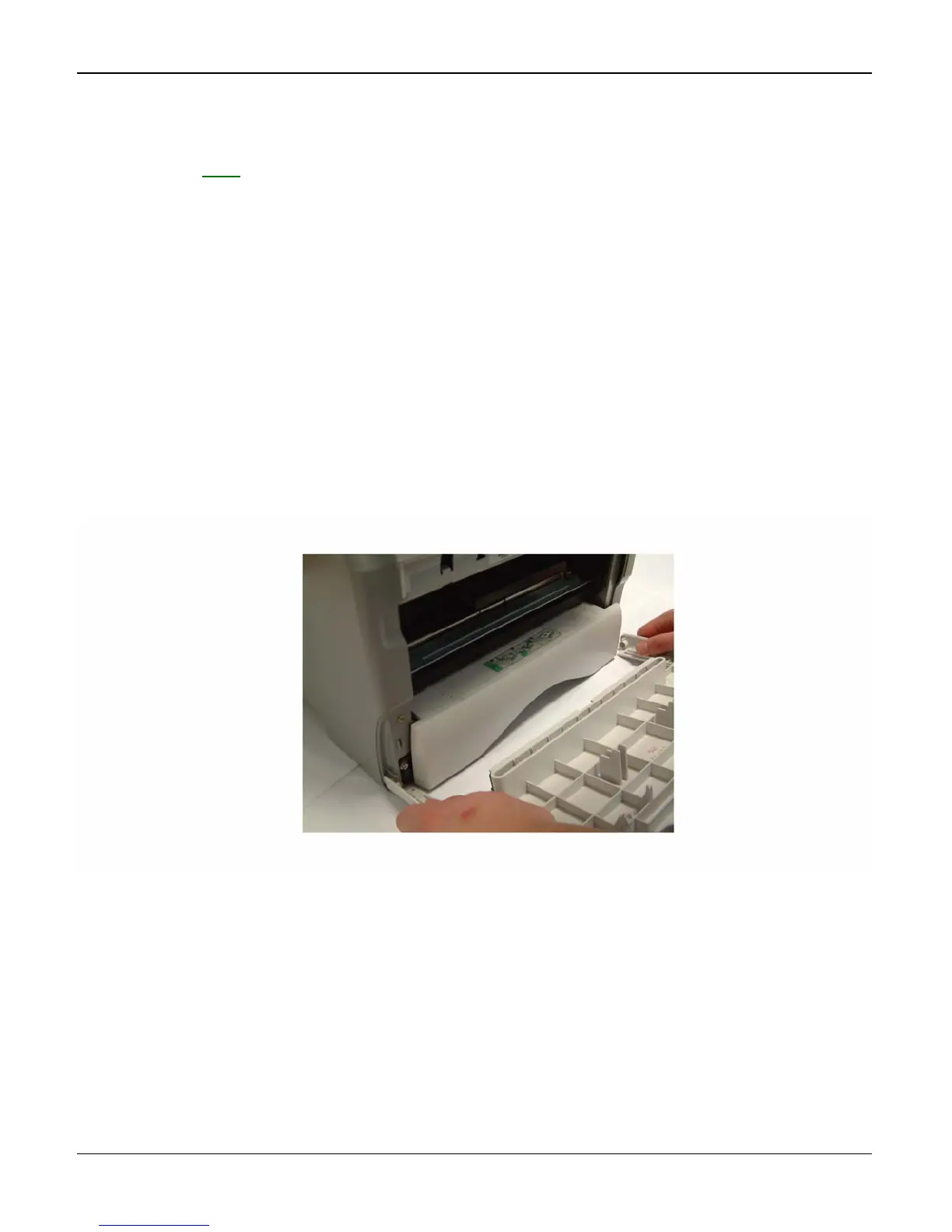

2. Move the arms away from each other and remove the printer front door, Figure 1.
Figure 1
Side Covers:
1. Open the printer’s paper tray.
To Next Page
