Repairs and Adjustments
Phaser 3100 MFP 04/08 4-35
REP 13 Back Cover
Parts List on: PL 3
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
Preparation
• Remove the ADF cover, REP 2.
• Remove the printer front door and the side covers, REP 3.
• Remove the CPU shield plate, refer to REP 11.
• Remove the platen assembly, REP 16
.
Removal

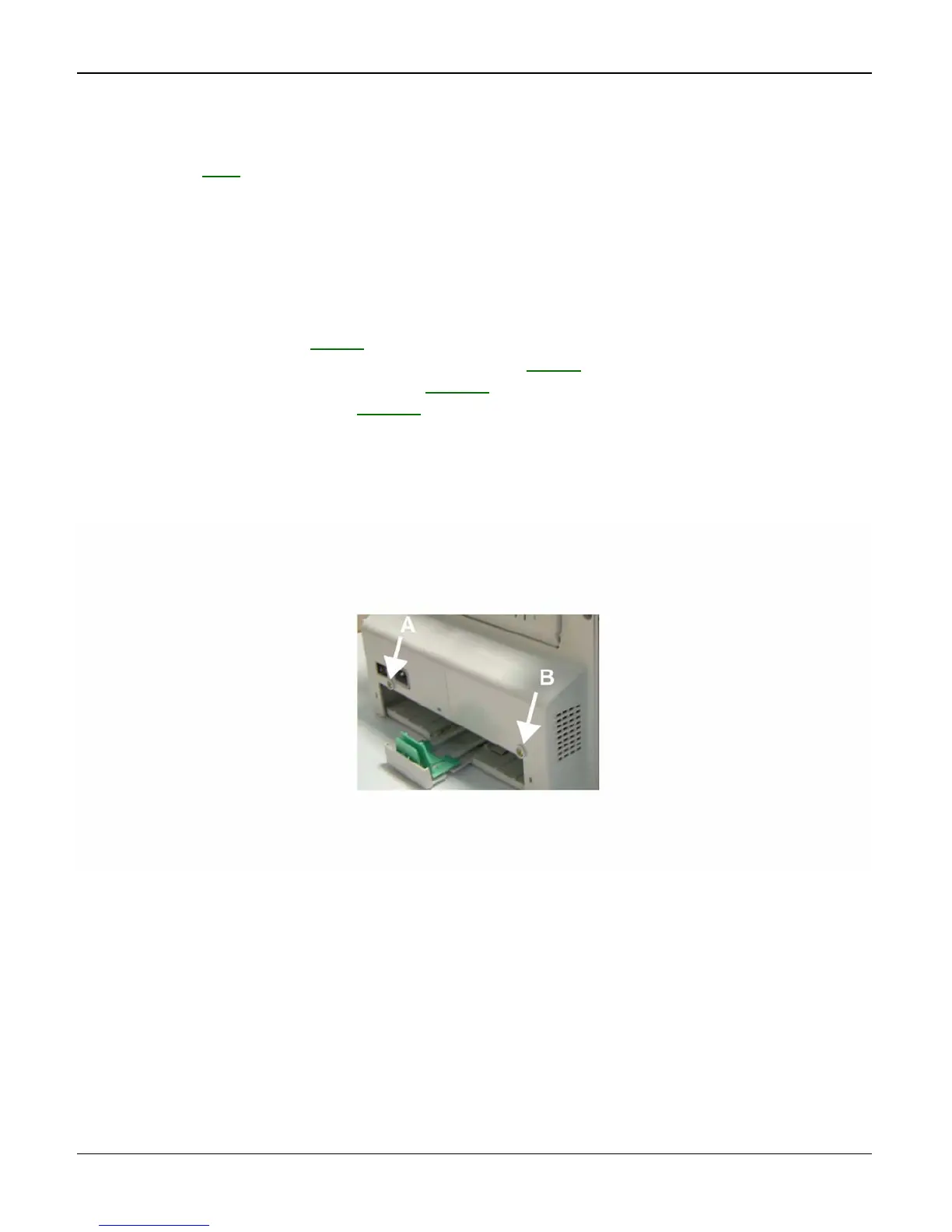

1. Unscrew the two back mounting screws on the back cover (A and B), Figure 1.
Figure 1
To Next Page
