ADF Cover:

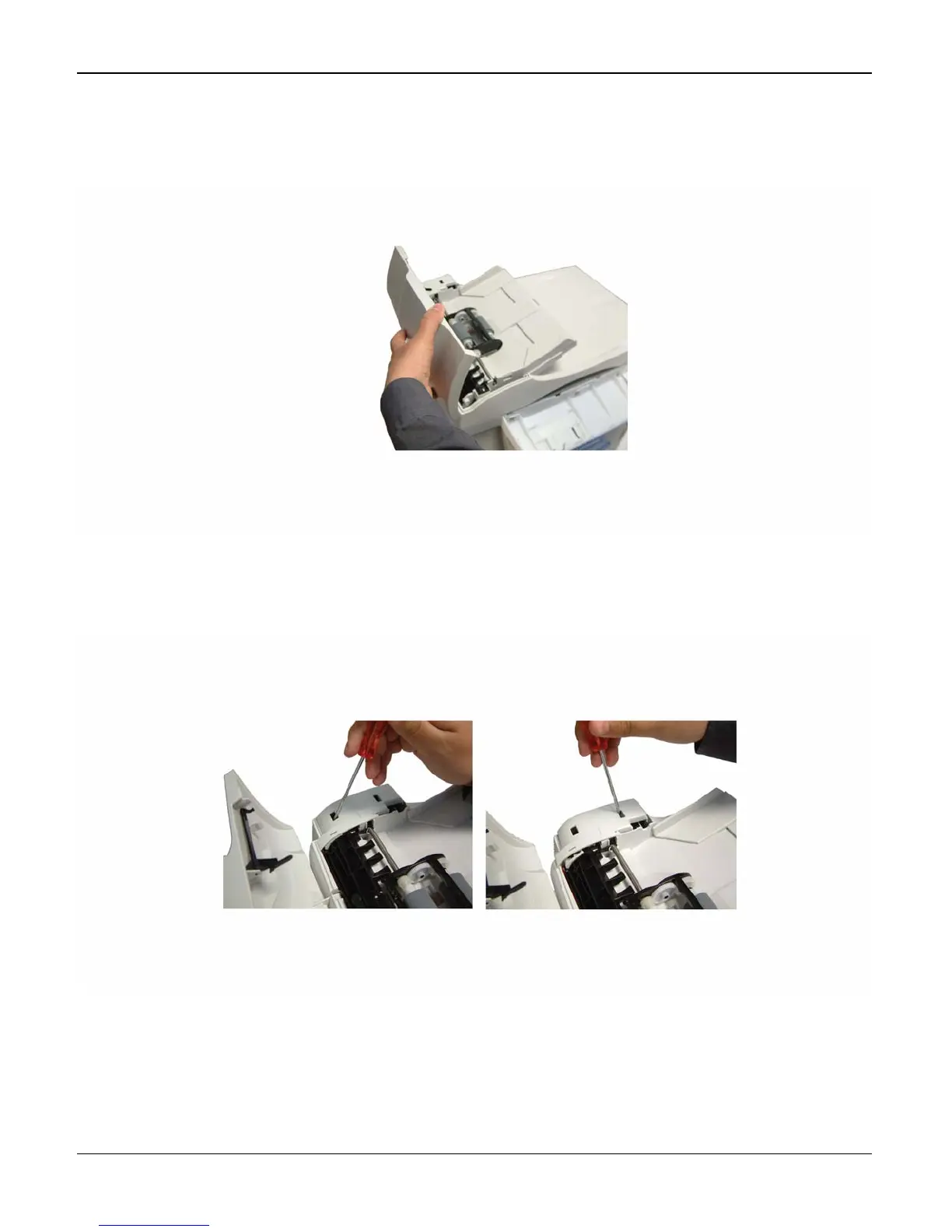

1. Close the ADF and open the ADF cover assembly, Figure 2.
Figure 2
2. Remove the ADF motor cover from its two slots using a flat screwdriver then remove the ADF
motor cover, Figure 3.
Figure 3
