Repairs and Adjustments
Phaser 3100 MFP 04/08 4-7

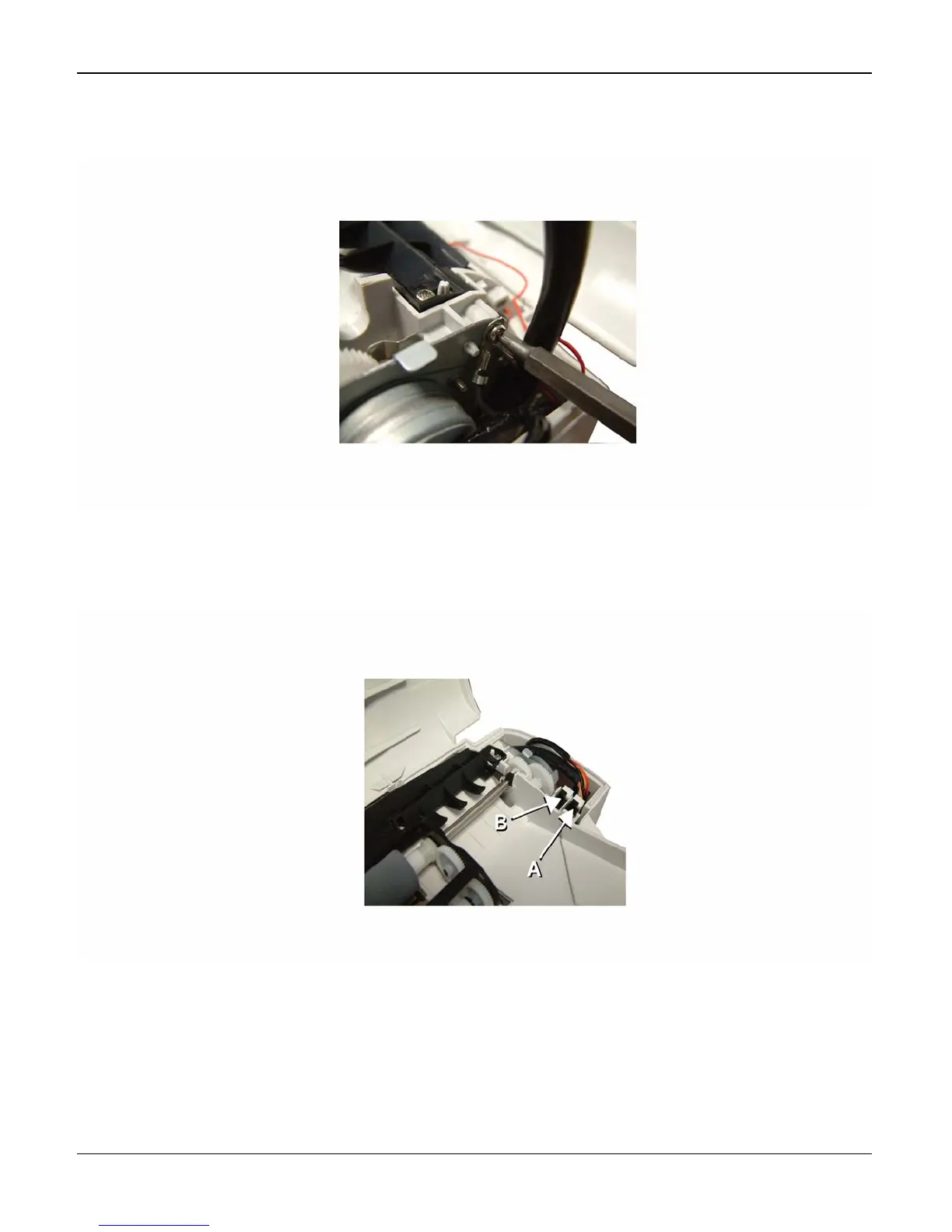

3. Unscrew the mounting screw of the ground cable, Figure 4.
Figure 4
4. Disconnect the ADF cover sensor connector (A) and the paper sensor connector (B), Figure
5.
Figure 5
