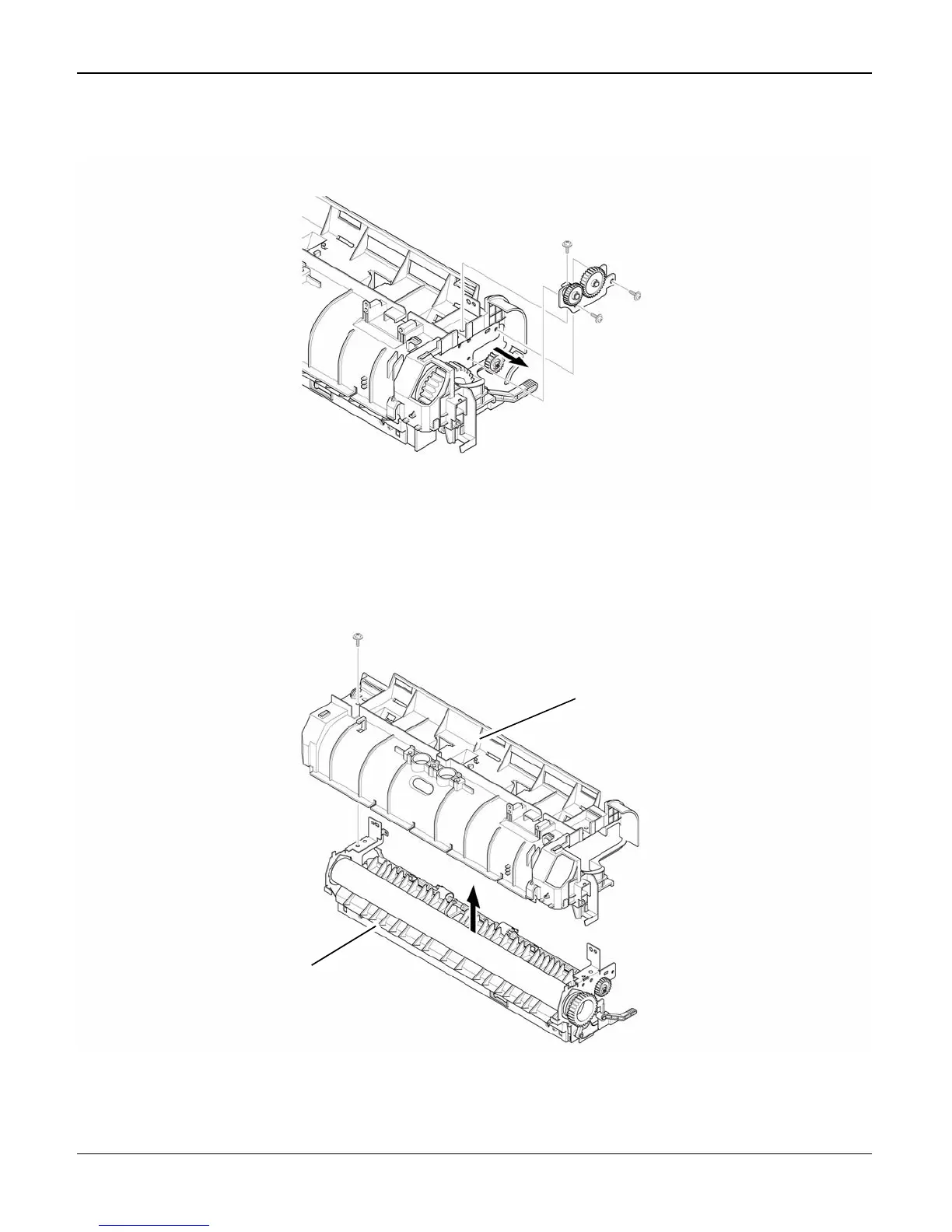

7. Remove the three screws securing the Idle Gear Bracket and remove it.
Figure 6
8. Remove the one screw securing the Fuser Cover and release the Fuser Cover from the
Fuser Frame.
Figure 7
Idle gear bracket
Fuser cover
Fuser frame
