Xerox PHASER 3435 - Page 120

Repairs and Adjustments
4-26 5/08 Phaser 3435

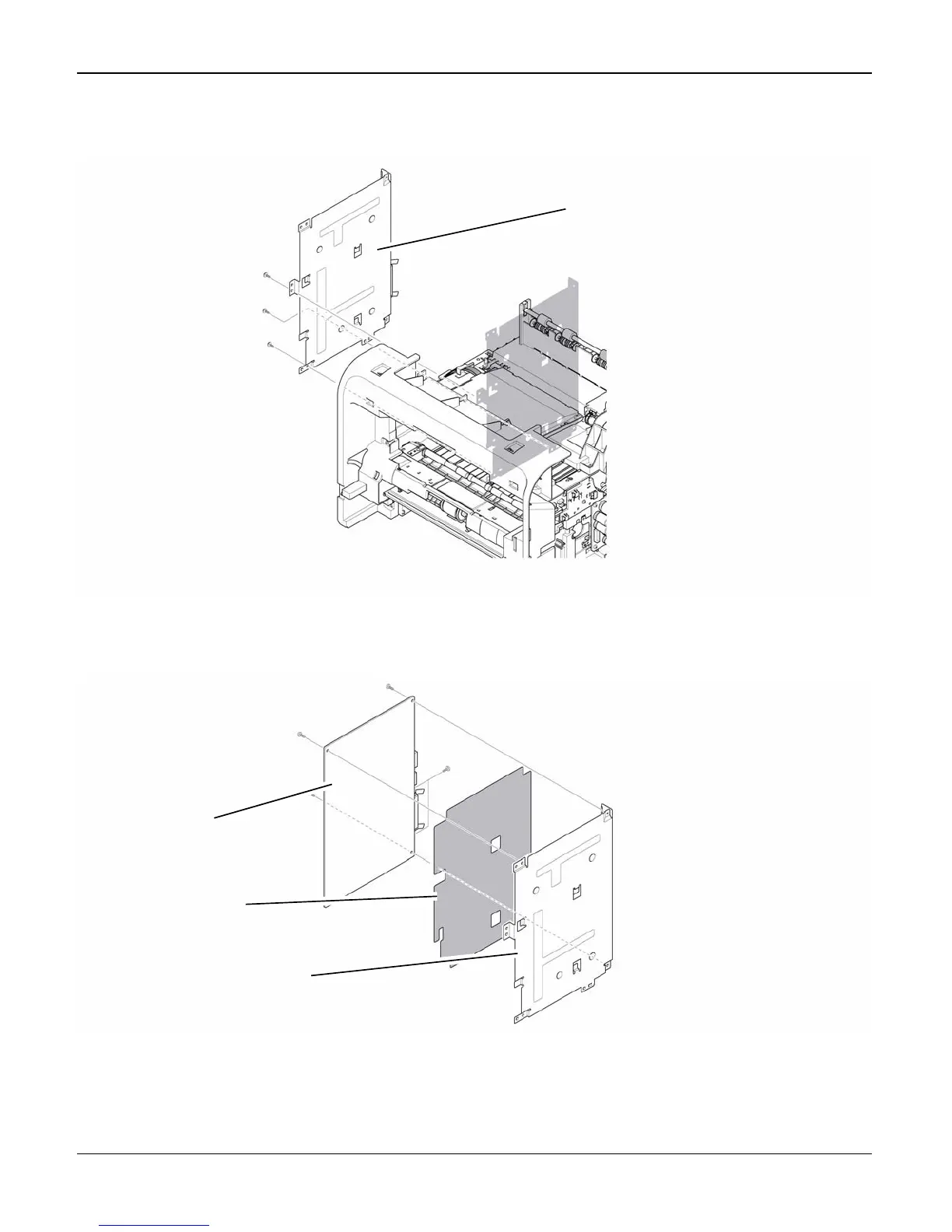

3. Remove the three screws securing the Shield Controller Assembly and remove it.
Figure 2
4. Remove the five screws securing the Main PBA to the Shield and remove it.
Figure 3
Shield controller assembly
Insulator sheet
Shield
Main PBA
