Repairs and Adjustments
Phaser 3435 5/08 4-59

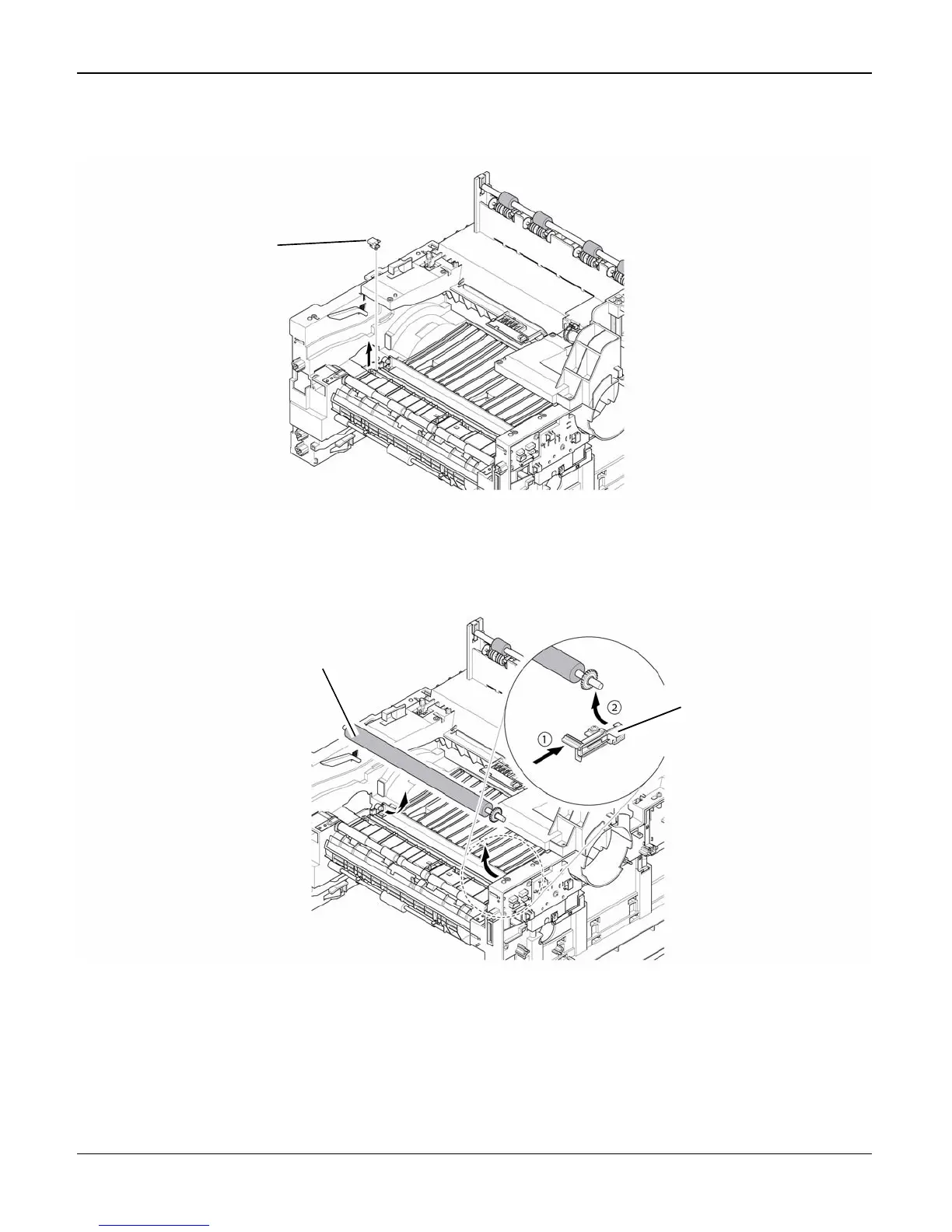

3. Release the PTL Holder, as shown below.
Figure 2
4. To remove the Transfer Roller, first pull the TR Holder and then take out the Transfer Roller,
as shown below.
Figure 3
Note: Do not grab the rubber part of the Transfer Roller, it may cause a malfunction due to a
foreign object. HolD the both side of the Transfer Roller when replacing it.
PTL holder
Transfer roller
TR holder
To Next Page
