Xerox PHASER 3435 - Page 197

General Procedures and Information
Phaser 3435 5/08 6-11

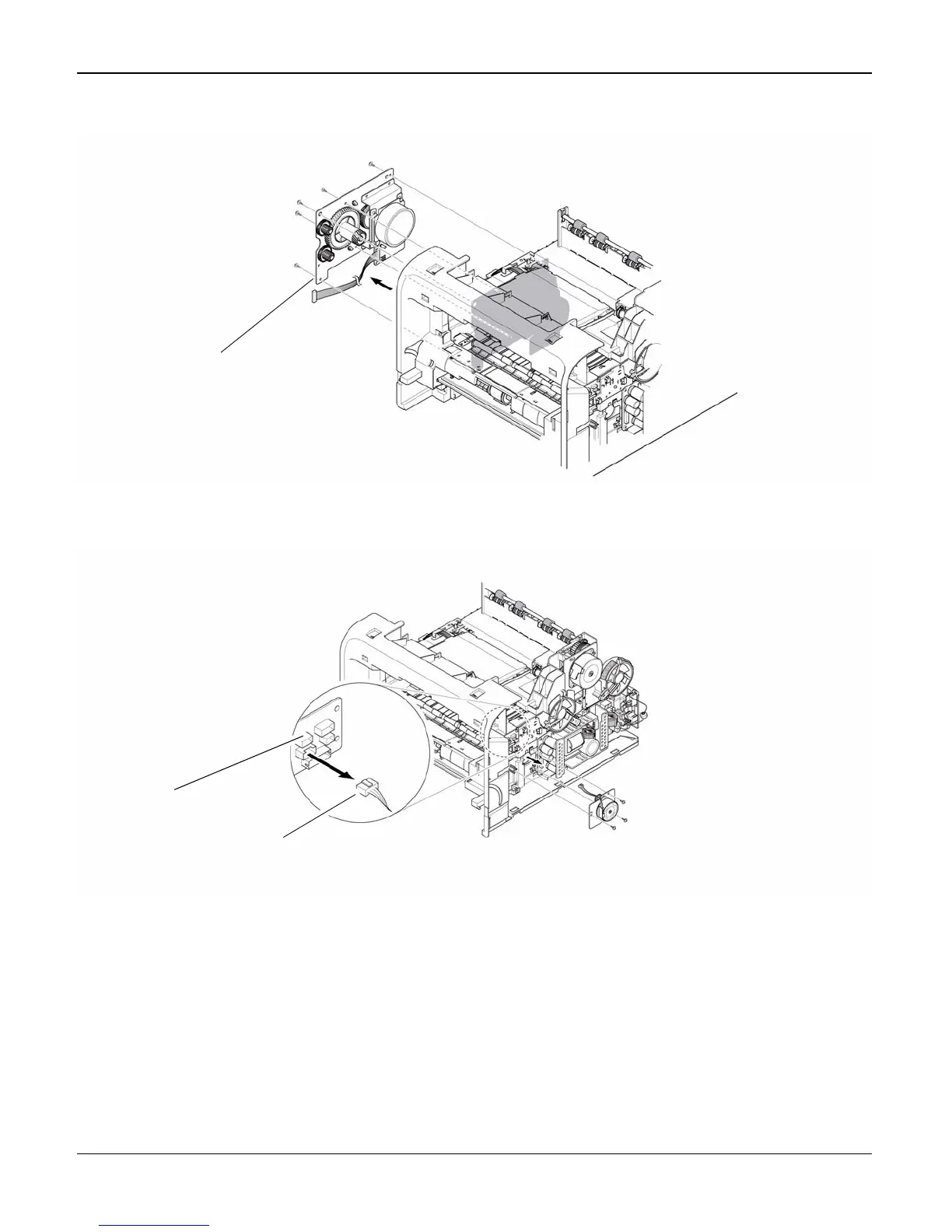

Figure 5
Figure 6
Fuser Assembly
• Fusing Type: Lamp Type
• Heat Roller: [28.3 with 0.1 Crown]
• Pressure Roller Pressure Roller 2: [electrically conductive]
• Thermistor - Temperature Detecting Sensor
• Thermostat - Overheat Protection Device
Drive assembly
Connection PCB
Duplex motor
