Xerox PHASER 3435 Service Manual

General Procedures and Information
Phaser 3435 5/08 6-27
Table 2: Consumption power

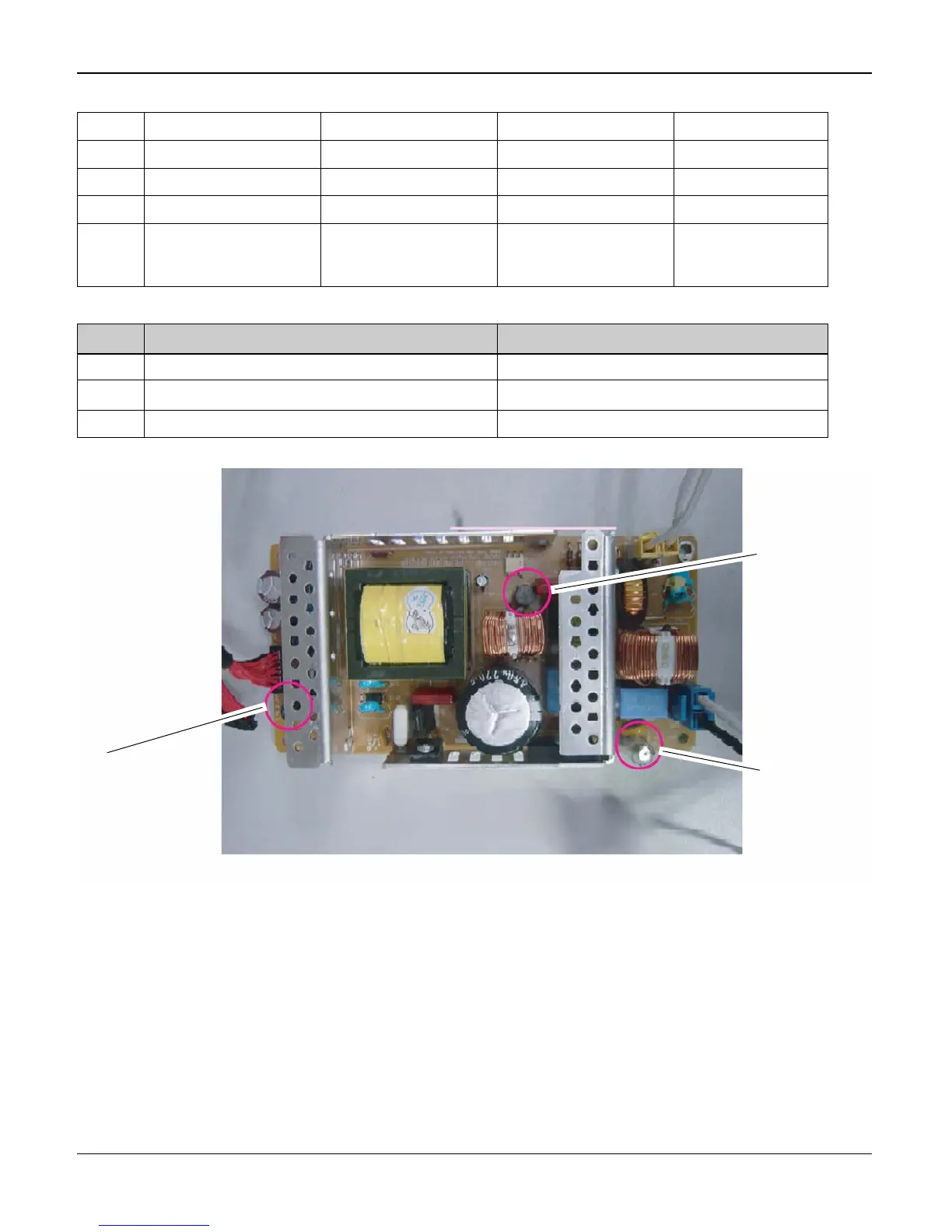

Figure 3
• Length of Power Cord: 1830 50mm
• Power Switch: Use
•Feature
-Insulating Resistance: 100 or more (at DC 500V)
-Withstanding Voltage: Must be no problem within 1 min.(at 1000V-LV model / 1500Vac-HV
model,10mA)
-Leaking Current: under 3.5mA
-Running Current: under 40A PEAK (AT 25, COLD START) under 60A PEAK (In other condi-
5 Peak Loading Current 3.6 A 5.3 A 1ms
6 Ripple Noise Voltage 100mVp-p Under 500mVp-p
7 Maximum output 15W 105.6W
8 Peak output 18W 127.2W 1ms
9 Protection for loading
shortage and overflow-
ing current
Shut down or Fuse Pro-
tection
Shut down or Output
Voltage Drop
NO ITEM System
1 Stand-By Less than 130W
2 Printing Less than 400W
3 Sleep-Mode Less than 11W
Fuse 5V
Fuse 5V
Fuse 24V

Xerox PHASER 3435 Specifications

General

Color	No
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Internal memory	64 MB
Sound power level (standby)	25 dB
Total input capacity	300 sheets
Total output capacity	150 sheets
Maximum input capacity	550 sheets
Media weight (tray 1)	60 - 163 gsm
Paper tray media types	Envelopes
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Network ready	Yes
Authentication method	IP filtering, 802.1x
Power consumption (active)	526 W
Maximum operating temperature range (T-T)	10 - 32 °C
Maximum duty cycle	80000 pages per month
Power consumption (standby)	36 W
Power consumption (PowerSave)	11 W
Operating temperature (T-T)	50 - 90 °F
Operating relative humidity (H-H)	20 - 80 %
Certification	CB Report (IEC 60950-1/EN 60950-1), Certified to UL 60950-1/CSA 60950-1-03, 1st Edition, CE Marked, EMC Directive 2004/108/EC, FCC Part 15, Class B, Low Voltage Directive 2006/95/EC, R&TTE Directive 1999/5/EC, RoHS Directive 2002/95/EC
