Status Indicator RAPs
Phaser 3435 5/08 2-11

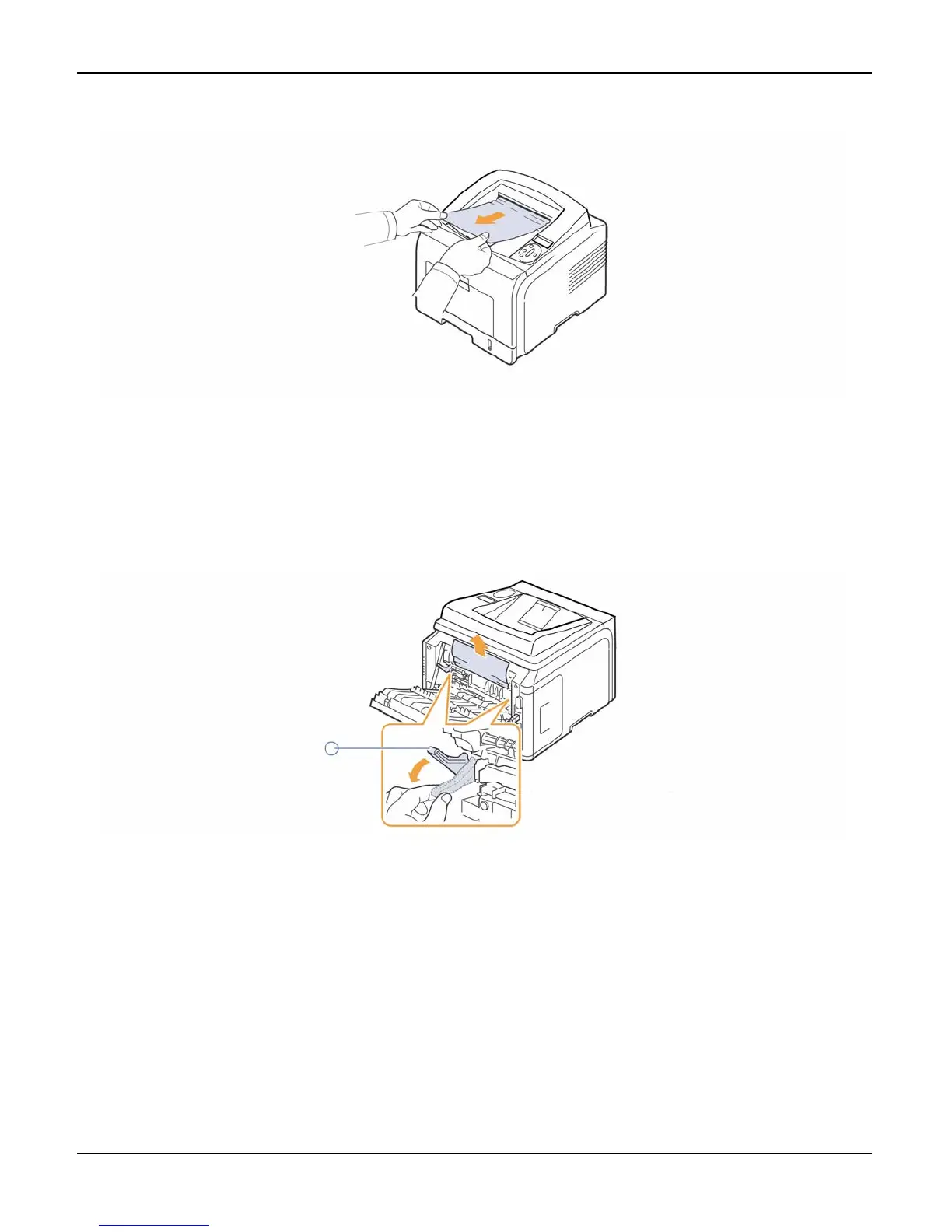

Figure 1
If you do not see the jammed paper or if there is any resistance when you pull, stop and go to
the next step.
3. Open the rear cover.
4. If you see the jammed paper, push the pressure lever on each side up and remove the paper.
Return the pressure lever to its original position.
Figure 2
If you still do not see the paper, go to the next step.
5. Release the blue strap, the rear cover stopper, and fully open the rear cover, as shown.
