Xerox PHASER 3435 - Special Media Guidelines

Status Indicator RAPs
2-10 5/08 Phaser 3435

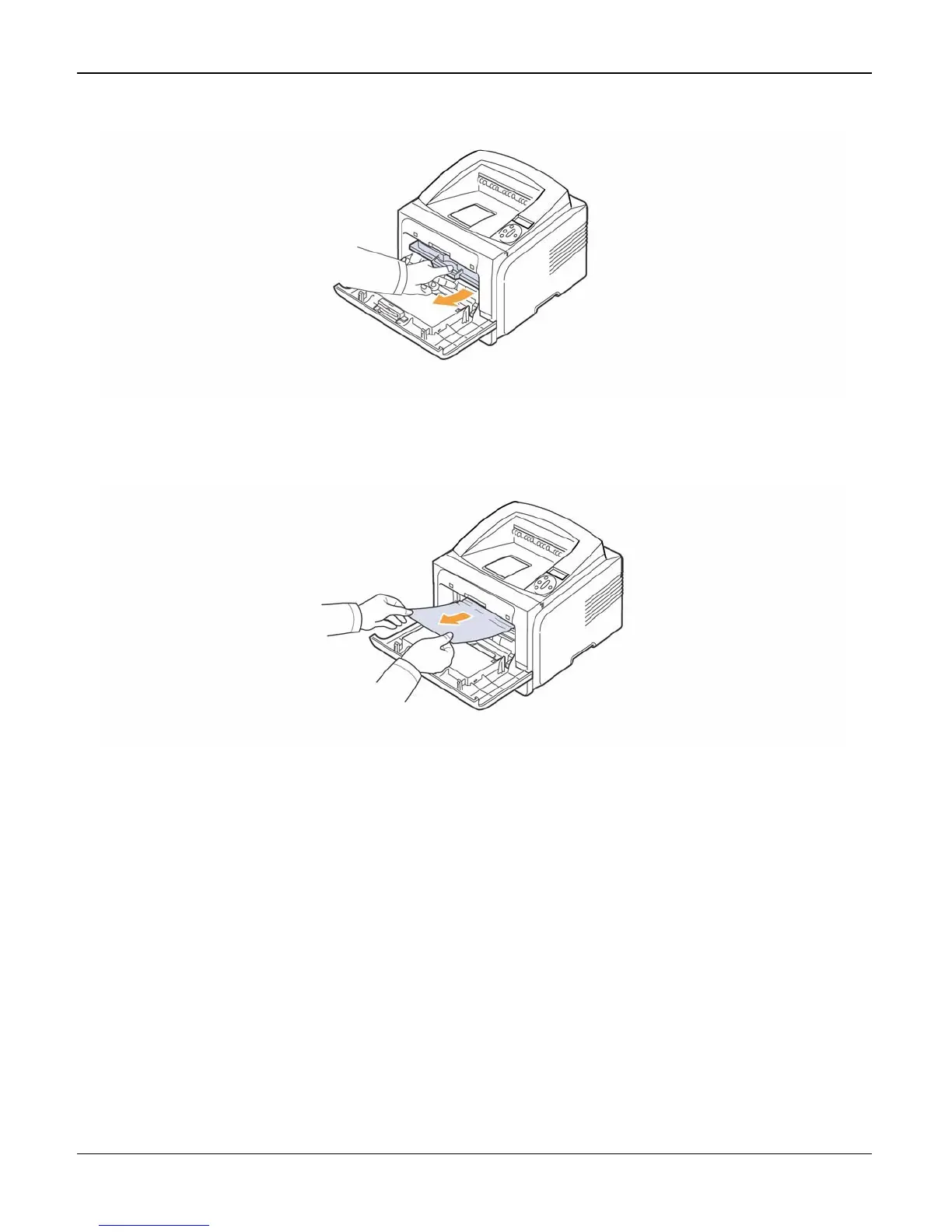

Figure 1
2. Remove the jammed paper by gently pulling it straight out.
Figure 2
3. Replace the print cartridge and close the front cover. Printing automatically resumes.
In the Paper Exit Area
1. Open and close the front cover. The jammed paper is automatically ejected from the printer.
2. Gently pull the paper out of the output tray.
