General Procedures and Information
6-10 06/06 WorkCentre 3119

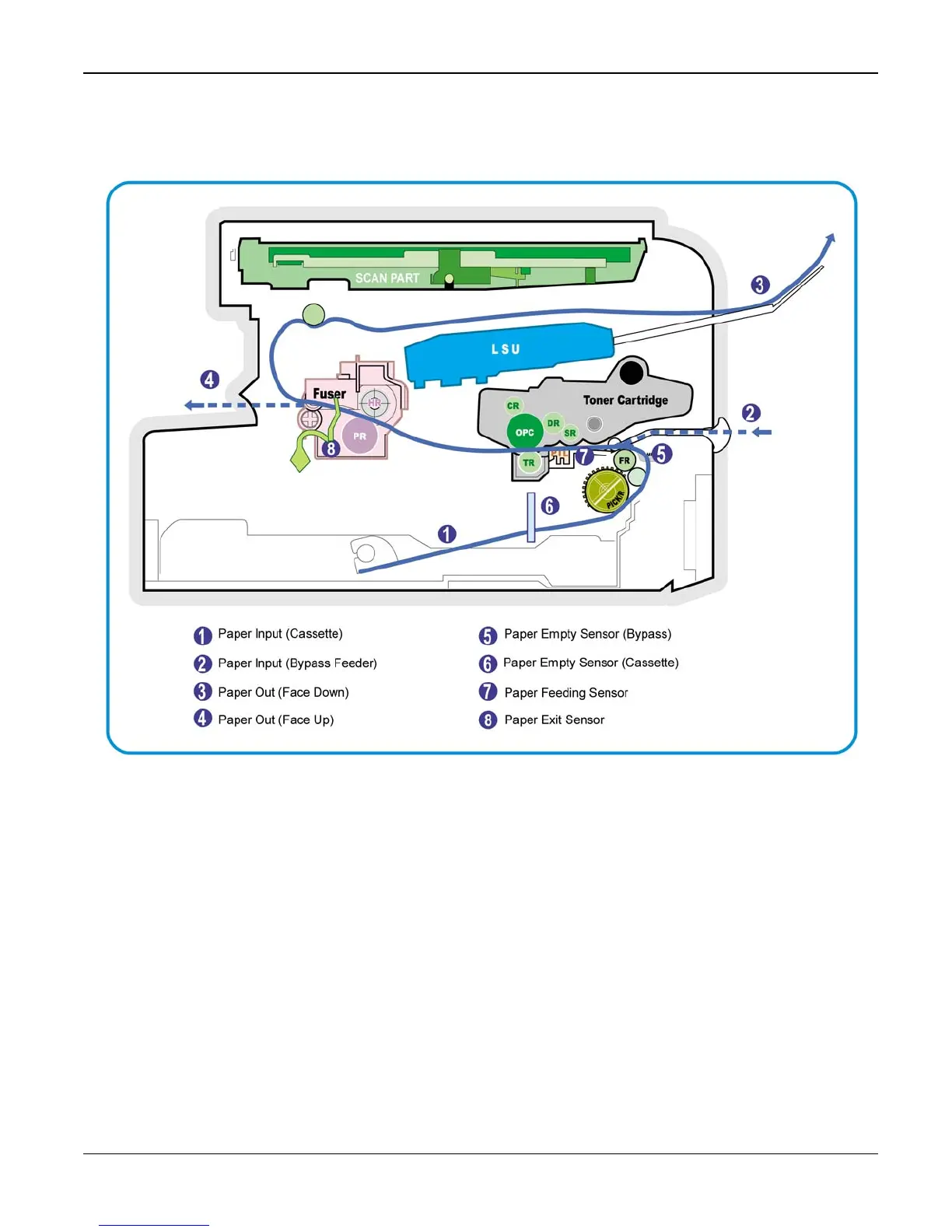

System layout
Figure 4
Paper Feed Mechanism
The printer has a 2 types of feeding methods, the universal cassette tray and a bypass feeder.
The cassette has a friction pad which separates paper to ensure single sheet feeding as well as
a sensor, which senses if the paper tray is empty.
• Feeding Method: Universal Cassette Type
• Feeding Standard: Center Loading
• Feeding Capacity: Cassette-250 sheets (75gsm , 20lb paper standard)
• Bypass Feeder - 1 sheet (Paper, OHP, Envelop, etc.)
• Paper detecting sensor: Photo sensor
• Paper size sensor: None
