Xerox WorkCentre 3119 Service Manual

Repairs/Adjustments
4-14 06/06 WorkCentre 3119
REP 9 Fuser
Parts list on PL 5
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.

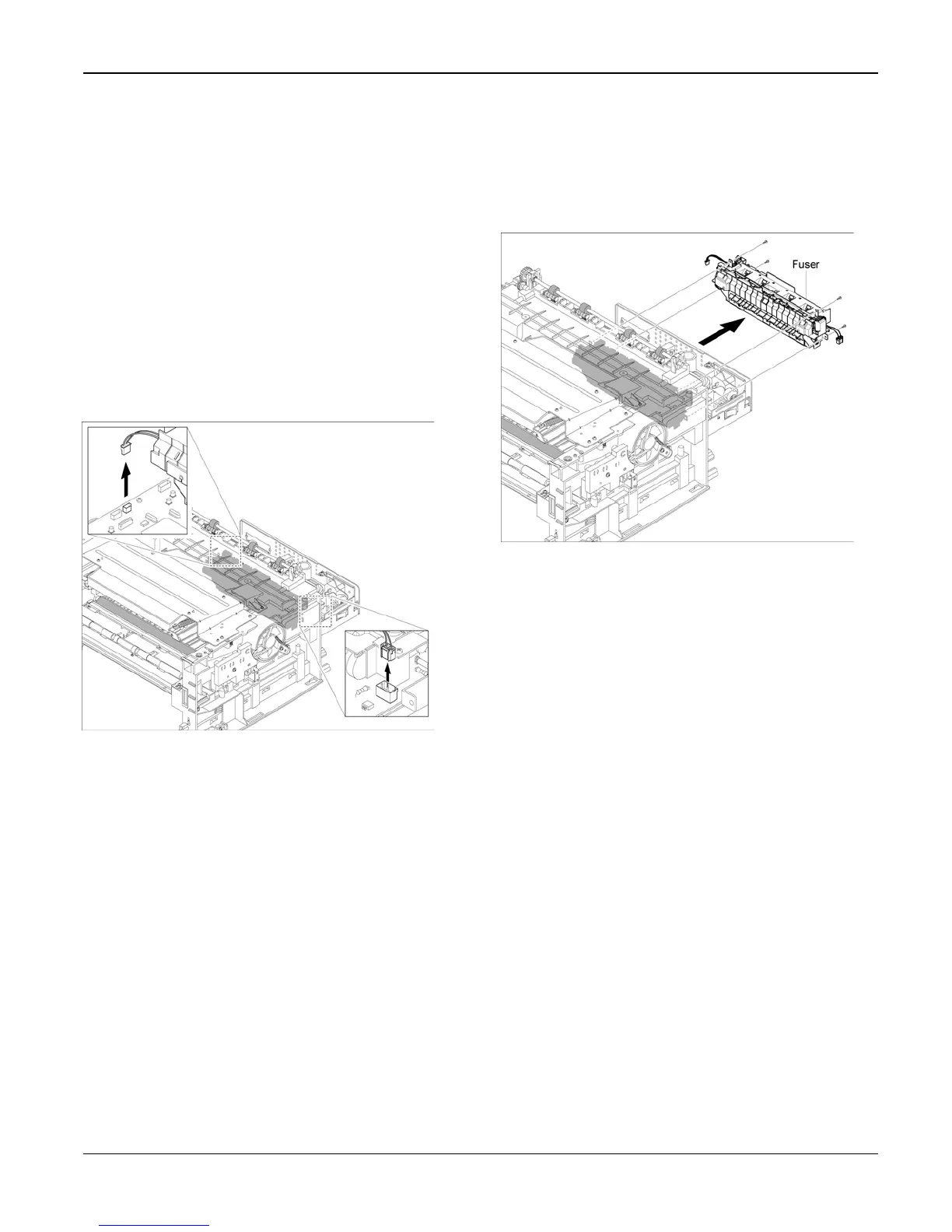

1. Remove the Rear Cover. (Refer to REP 2)
2. Disconnect CON 1 from the SMPS/HVPS
and CN 12 from the Main PBA, Figure 1.
Figure 1
CAUTION
When removing the fuser, take care not to
damage the Exit Sensor.
3. Remove 4 screws, then the fuser, Figure
2.
Figure 2

Xerox WorkCentre 3119 Specifications

General

Print Technology	Laser
Print Speed	19 ppm
Print Resolution	600 x 600 dpi
Copy Speed	19 cpm
Copy Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Scanner Type	Flatbed
Memory (Standard)	32 MB
Operating System Compatibility	Windows, Mac
