Xerox WorkCentre 3119 Service Manual

Image Quality
WorkCentre 3119 06/06 3-5

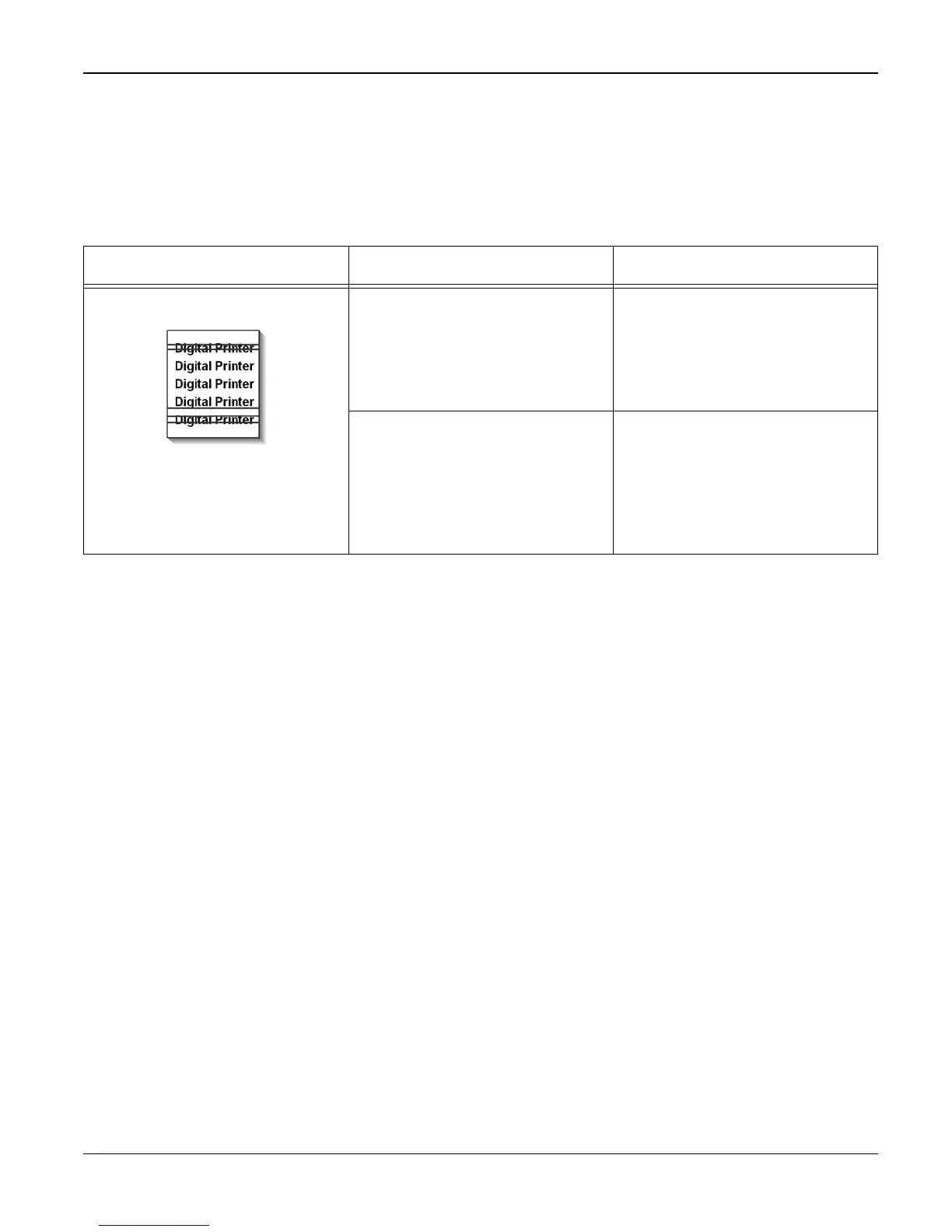

IQ 3 Horizontal Black Band
Description
Dark or blurry horizontal stripes on print periodically.
Check and Cause Solution
1. Bad contacts on the toner car-
tridge contacts, PL 1, MEC-TERMI-
NAL and IPR-P-Terminal CON, PL
3.
1. Clean all the following parts:
• Toner cartridge contacts, PL 1
• MEC-TERMINAL, PL 3
• IPR-P-Terminal CON, PL 3
Ensure all toner and paper dust
particles are removed.
2. The rollers used in the image
development process may be con-
taminated.
Charge Roller = 37.8mm
Supply Roller = 44.9mm
Develop Roller = 35.2mm
Transfer Roller = 45.3mm
2. Clean all the gears on the toner
cartridge, PL 1.
If the problem still persists, replace
the Toner Cartridge, PL 1.
