Xerox WorkCentre 3119

Repairs/Adjustments
4-8 06/06 WorkCentre 3119

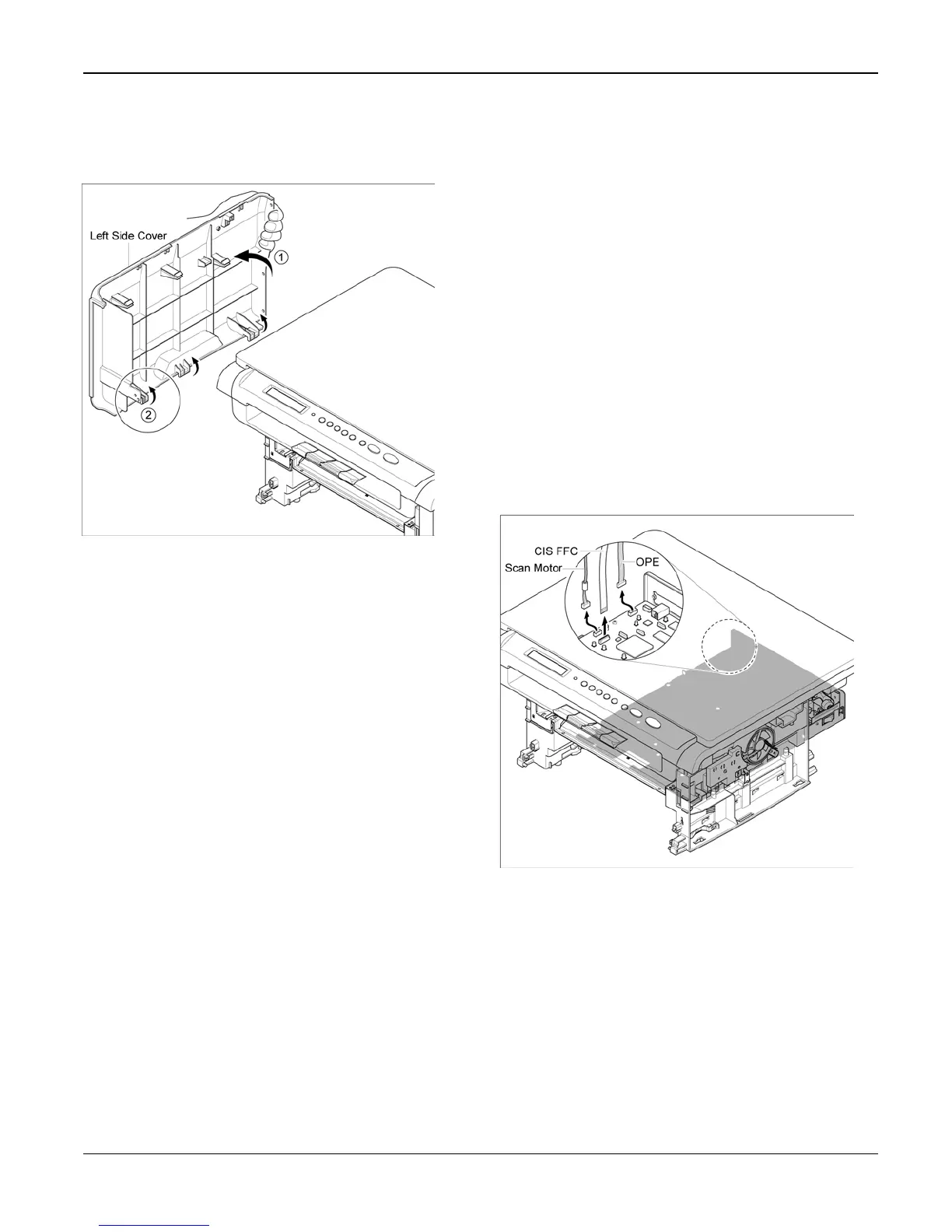

4. Gently flex the Left Side Cover in the
direction of the arrows then remove the
Left Side Cover, Figure 2.
Figure 2
REP 6 Scan Assembly
Parts list on PL 7
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Right Side Cover. (Refer to
REP 4)
2. Remove the Left Side Cover (Refer to
REP 5).
3. Release the adjustable cable tie and dis-
connect CN 8, CN 13 and CON 14 from
the Main PBA, Figure 1.
Figure 1
