Xerox WorkCentre 3119 Service Manual

Repairs/Adjustments
4-12 06/06 WorkCentre 3119
REP 7 OPE Assembly
Parts list on PL 8
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.

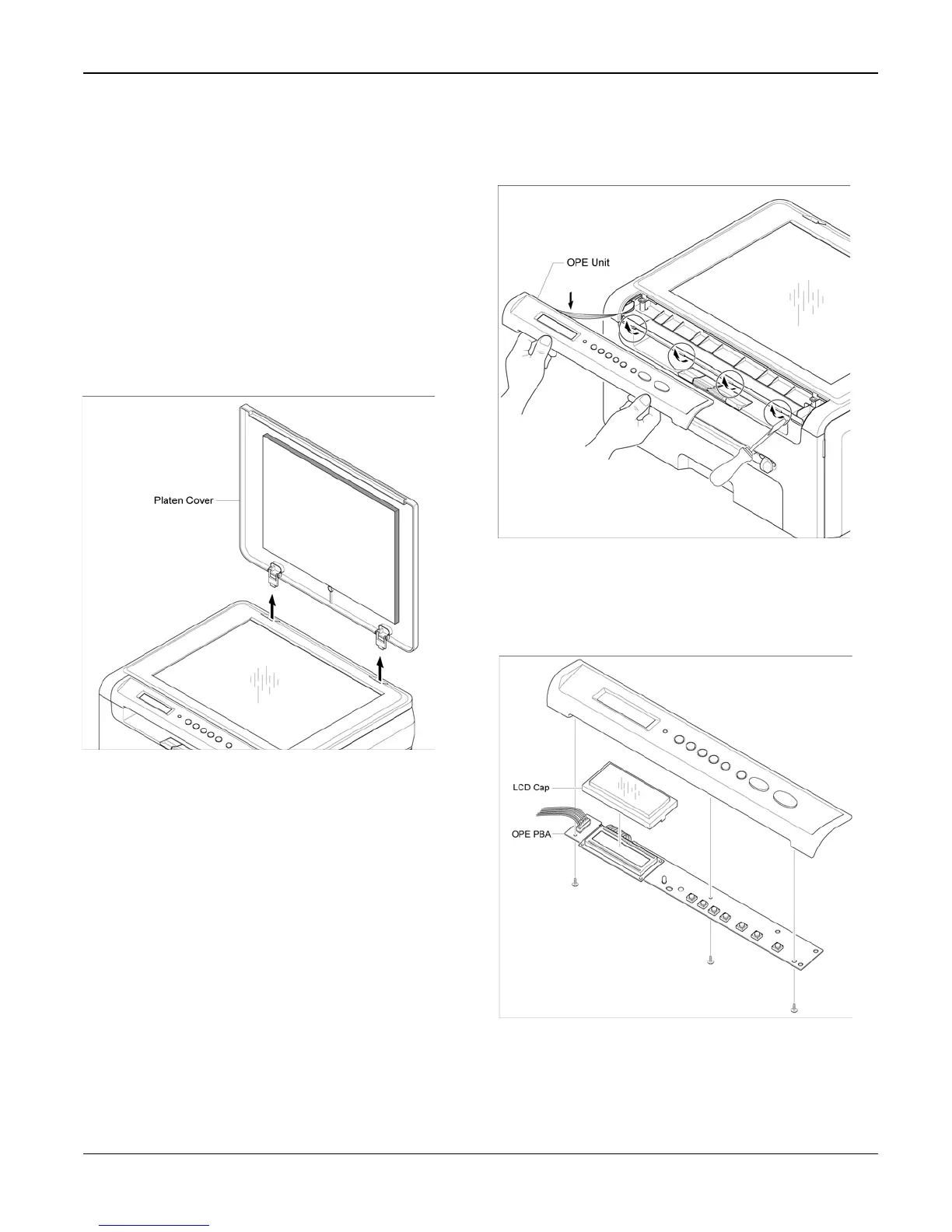

1. Lift the Platen Cover upwards and remove
the Platen Cover, Figure 1.
Figure 1
2. Use a flat-bladed screwdriver to unhook
the OPE panel clips in the direction of the
arrows, Figure 2.
Figure 2
3. Remove 3 screws,then disconnect CN 1
from the OPE PBA. Remove the OPE
PBA, Figure 3..
Figure 3

Xerox WorkCentre 3119 Specifications

General

Print Technology	Laser
Print Speed	19 ppm
Print Resolution	600 x 600 dpi
Copy Speed	19 cpm
Copy Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Scanner Type	Flatbed
Memory (Standard)	32 MB
Operating System Compatibility	Windows, Mac
