Repairs/Adjustments
WorkCentre 3119 06/06 4-17

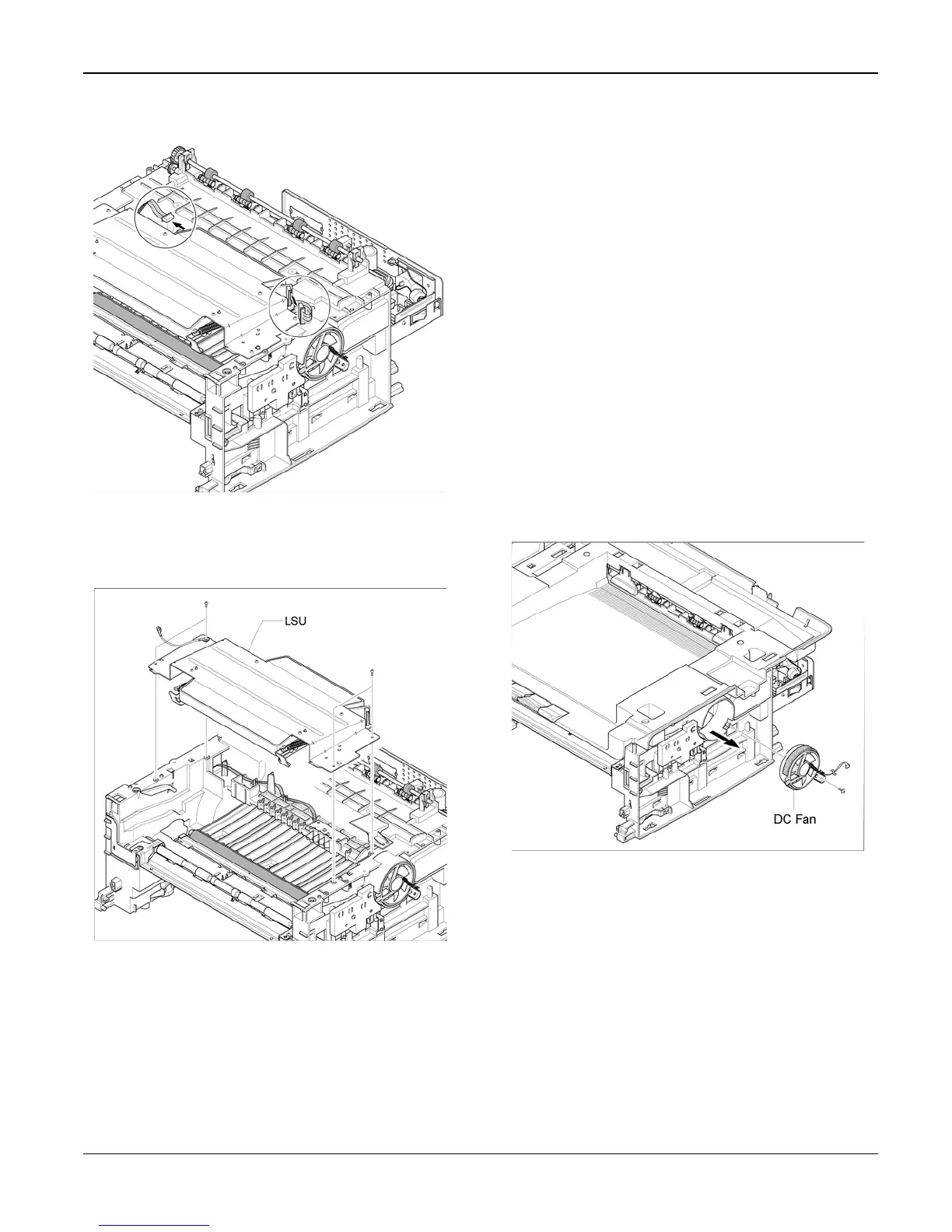

4. Disconnect the LSU connectors, Figure 2.
Figure 2
5. Remove 4 screws, then the LSU, Figure
3.
Figure 3
REP 11 Toner Fan
Parts list on PL 1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Front Cover. (Refer to REP
1)
2. Remove the Rear Cover. (Refer to REP 2)
3. Remove the Right Side Cover. (Refer to
REP 4)
4. Disconnect CON 3 from the SMPS/HVPS.
5. Remove 1 screw, then the Toner Fan.
Figure 1.
Figure 1
To Next Page
