Xerox WorkCentre 3119 Service Manual

Status Indicator RAPs
WorkCentre 3119 07/06 2-7

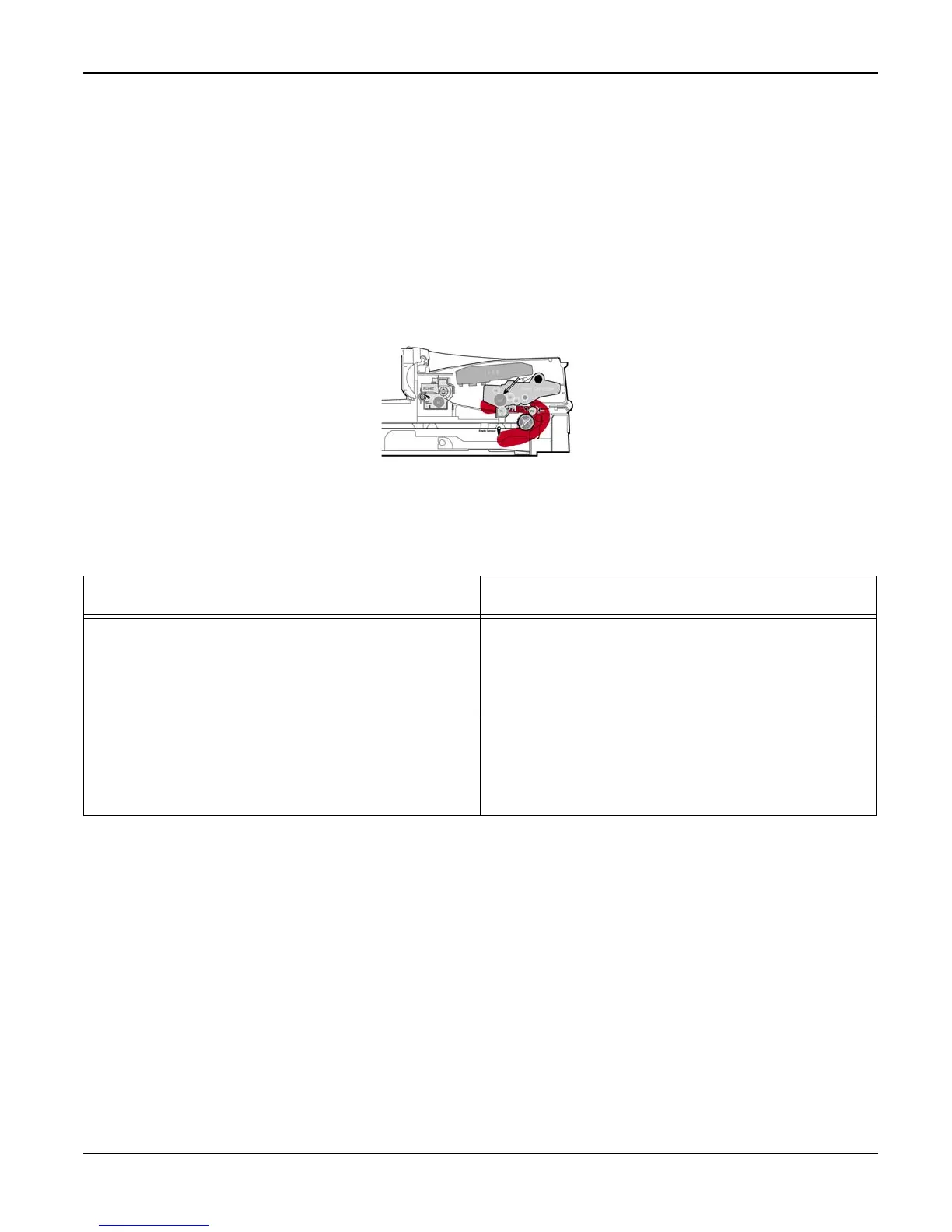

3 JAM 1 RAP
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
Description
Paper is jammed in front of or inside the fuser.
Paper is jammed in the exit roller and in the fuser after passing through the feed sensor actuator.
Check and Cause Solution
1. If paper is jammed in the exit roller, PL 3
and the fuser, PL 5 after passing through the
feed sensor actuator, PL 4, the feed sensor
actuator may be defective.
1. Check the feed sensor actuator, PL 4 for
damage, install a new feed sensor actuator if
necessary.
2. If paper is jammed in front of or inside the
fuser, PL 5.
2. Install new parts as necessary:
• Exit sensor actuator, PL 4
• SMPS/HVPS, PL 1
• Main PBA., PL 1

Xerox WorkCentre 3119 Specifications

General

Print Technology	Laser
Print Speed	19 ppm
Print Resolution	600 x 600 dpi
Copy Speed	19 cpm
Copy Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Scanner Type	Flatbed
Memory (Standard)	32 MB
Operating System Compatibility	Windows, Mac
