Xerox WorkCentre 3119

Repairs/Adjustments
WorkCentre 3119 06/06 4-21
REP 15 CRUM PBA
Parts list on PL 3
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the LSU. (Refer to REP 10)
2. Remove the Engine Shield Assembly.
(Refer to REP 12)

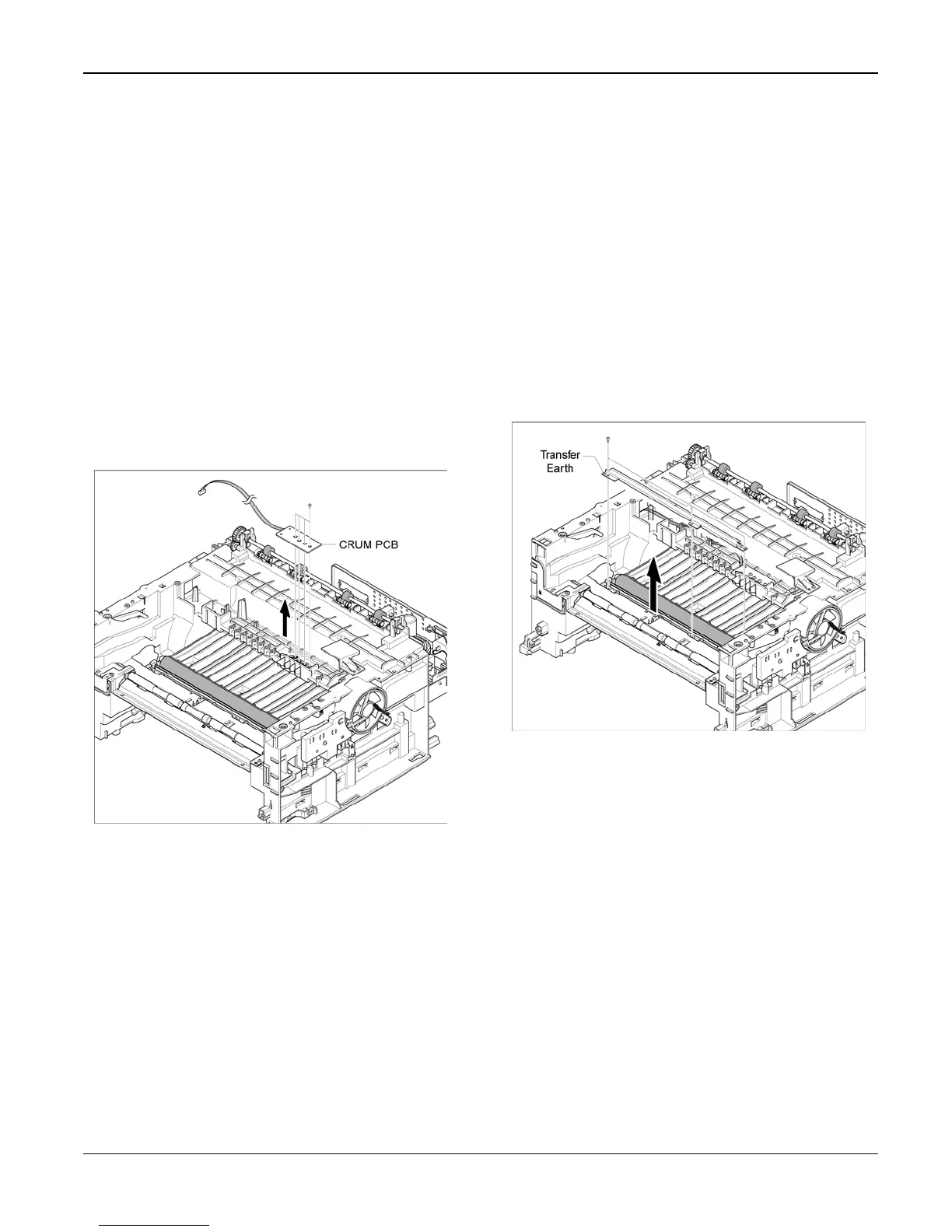

3. Remove 4 screws, then the CRUM PBA,
Figure 1.
Figure 1
REP 16 Transfer Roller
Parts list on PL 1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the LSU. (Refer to REP 10)
2. Remove 3 screws, then the Transfer
Earth, Figure 1.
Figure 1
3. Disconnect the PTL PBA Harness then
remove the PTL Holder and PTL Lens,
Figure 2.
