Xerox WorkCentre 3119 Service Manual

Status Indicator RAPs
2-8 07/06 WorkCentre 3119
4 JAM 2 RAP
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.

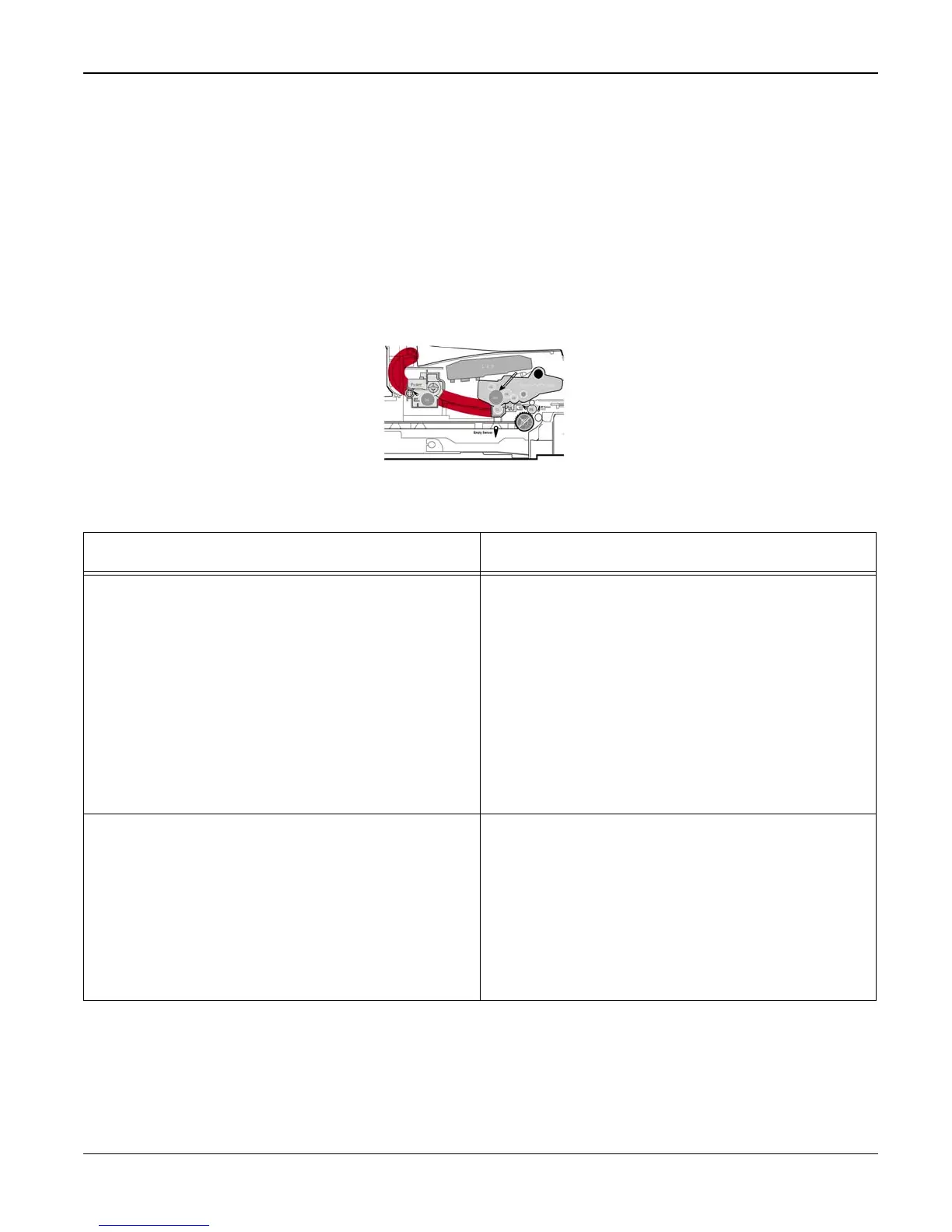

Description
Paper is jammed in front of or inside the fuser.
Paper is jammed in the discharge roller and in the fuser after passing through the Actuator-Feed.
Check and Cause Solution
1. If the paper is completely fed out of the
machine, but Jam 2 occurs:
• The exit sensor is defective.
Note: The exit sensor is mounted onto the
SMPS/HVPS, PL 1.
• After the paper is completely fed out, the exit
sensor actuator, PL 5 should return to its orig-
inal position to deactivate the photo-sensor.
Sometimes it takes longer than it should and
does not return to its original position.
1. Check the exit sensor actuator, PL 5.
2. If the paper is rolled up in the fuser , PL 5:
• A stripper finger, PL 5 is damaged.
• The heat roller or pressure roller, PL 5 is
seriously contaminated,
2. Disassemble the fuser, refer to REP 9.
Remove the jammed paper and clean the sur-
face of the pressure roller, heat roller, and the
stripper fingers, PL 5.
Install new parts as necessary:
• Heat roller, PL 5
• Pressure roller, PL 5
•Fuser, PL 5

Xerox WorkCentre 3119 Specifications

General

Print Technology	Laser
Print Speed	19 ppm
Print Resolution	600 x 600 dpi
Copy Speed	19 cpm
Copy Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Scanner Type	Flatbed
Memory (Standard)	32 MB
Operating System Compatibility	Windows, Mac
