Xerox WorkCentre 3119 Service Manual

Repairs/Adjustments
WorkCentre 3119 06/06 4-11

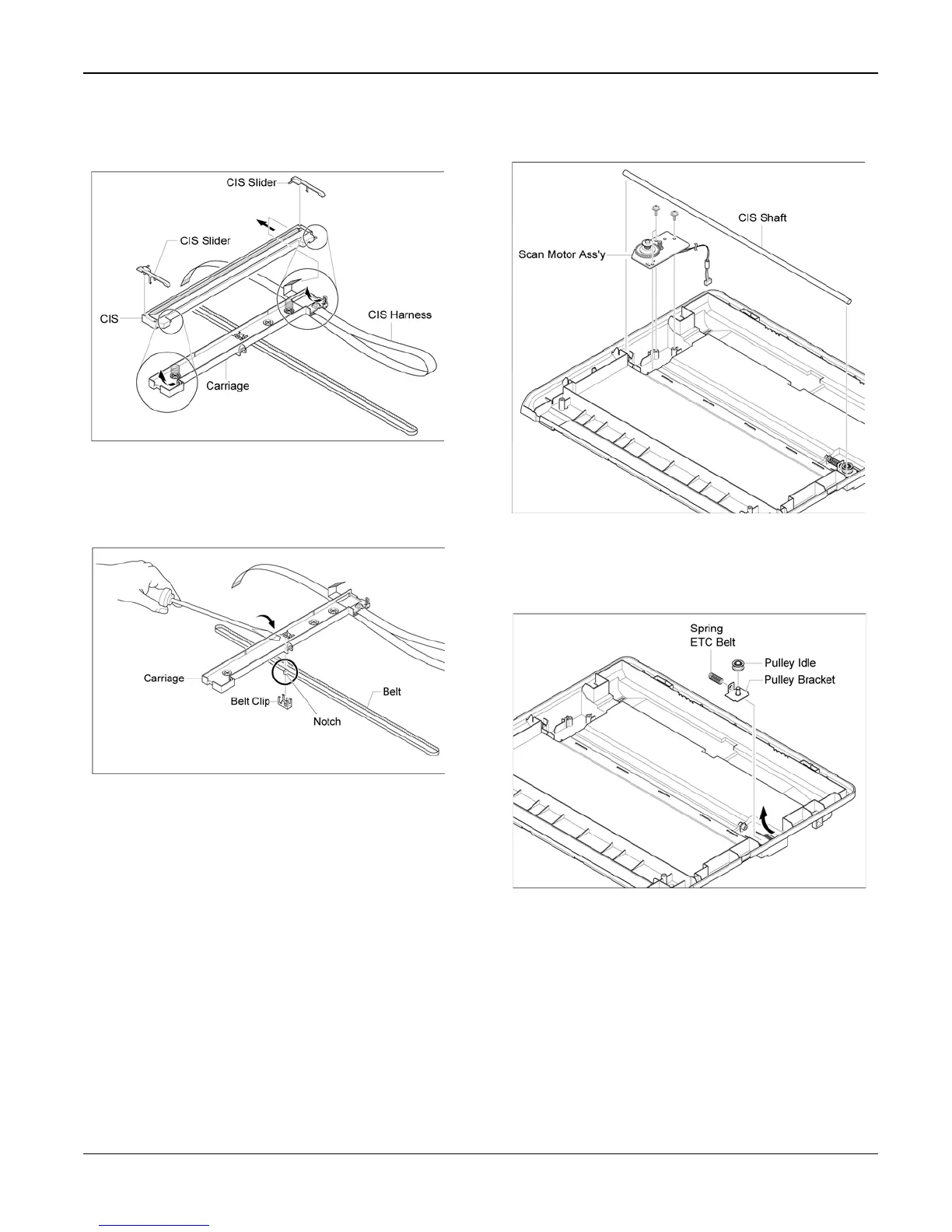

CIS. Release the CIS in the direction of
the arrow, Figure 10.
Figure 10
13. Remove the Belt Clip with a screwdriver to
release the Scanner Belt, Figure 11.
Figure 11
Note: Take note of the position of the notch to
ensure correct replacement when fitting the
Scanner Belt into the Carriage.
14.Remove the CIS shaft, 3 screws, then the
Scan Motor Assembly, Figure 12.
Figure 12
15.Remove the Spring then the Idle Bracket
in the direction of the arrow, Figure 13.
Figure 13

Xerox WorkCentre 3119 Specifications

General

Print Technology	Laser
Print Speed	19 ppm
Print Resolution	600 x 600 dpi
Copy Speed	19 cpm
Copy Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Scanner Type	Flatbed
Memory (Standard)	32 MB
Operating System Compatibility	Windows, Mac
