Xerox WorkCentre 3119

General Procedures and Information
WorkCentre 3119 06/06 6-13

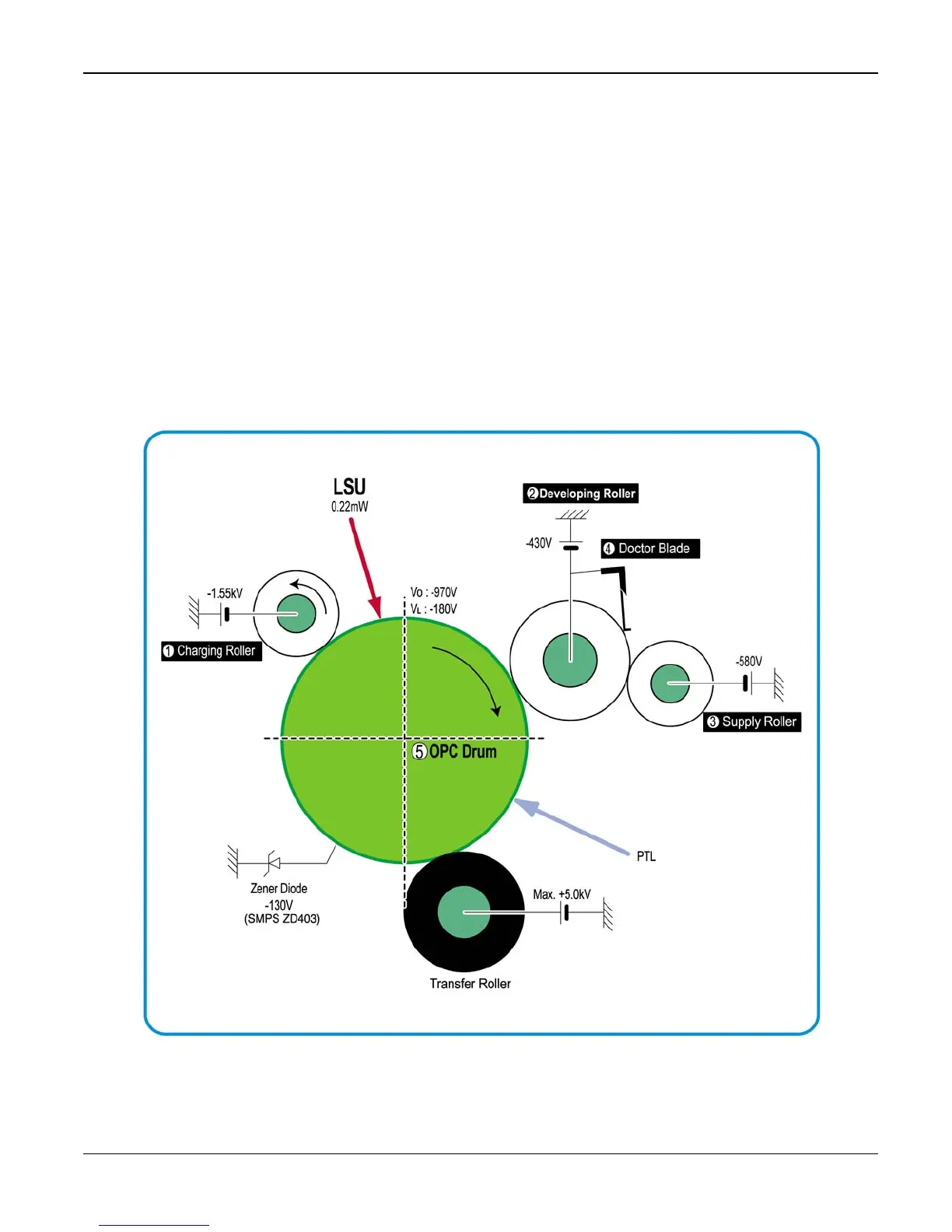

Toner Cartridge
The toner cartridge is an integral unit containing the OPC unit and toner unit. The OPC unit con-
sists of the OPC drum and charging roller, and the toner cartridge unit consists of the toner, supply
roller, developing roller, and blade (Doctor blade)
- Developing Method: Non magnetic 1 element contacting method
- Toner: Non magnetic 1 element shatter type toner
- The life span of toner: 3,000 sheets (ISO standard)
- Toner remaining amount detecting sensor: No
- OPC Cleaning: Electrostatic process
- Management of waste toner: Electro static process(Cleanerless Type)
- OPC Drum protecting Shutter: No
- Classifying device for toner cartridge: ID is classified by interruption of the frame channel
Figure 6
