Xerox WorkCentre 3119 Service Manual

General Procedures and Information
6-38 06/06 WorkCentre 3119

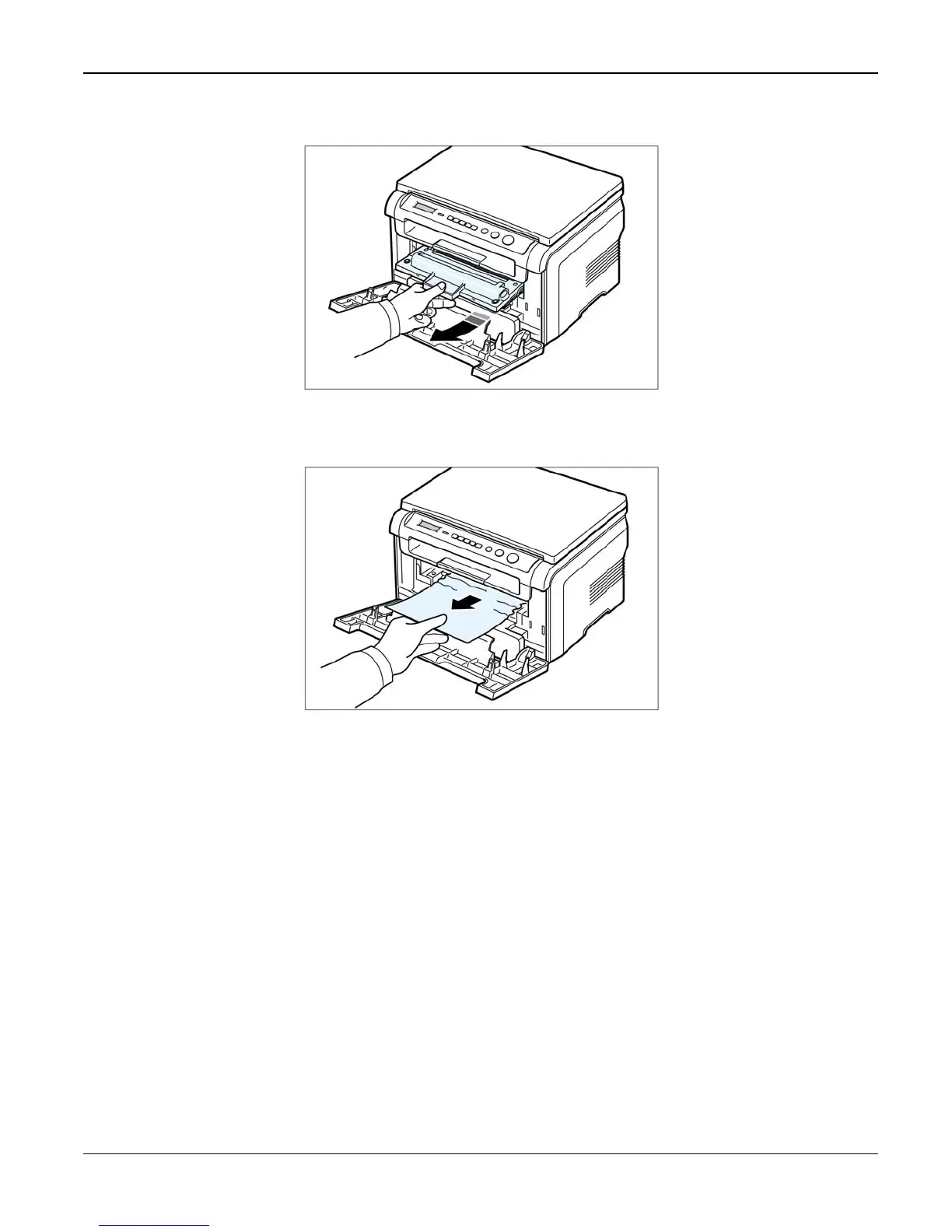

1. Open the front cover and lightly push down on the cartridge then pull to take it out.
Figure 7
2. Remove the jammed paper by gently pulling it straight out.
Figure 8
3. Replace the toner cartridge and close the front cover. Printing automatically resumes.
In the Bypass Feeder
Bypass Jam appears on the display when you try to print using the bypass feeder and the machine
does not detect paper, due to no paper or improper paper loading. The error message may also

Xerox WorkCentre 3119 Specifications

General

Print Technology	Laser
Print Speed	19 ppm
Print Resolution	600 x 600 dpi
Copy Speed	19 cpm
Copy Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Scanner Type	Flatbed
Memory (Standard)	32 MB
Operating System Compatibility	Windows, Mac
