Xerox WorkCentre 3119

Repairs/Adjustments
WorkCentre 3119 06/06 4-23

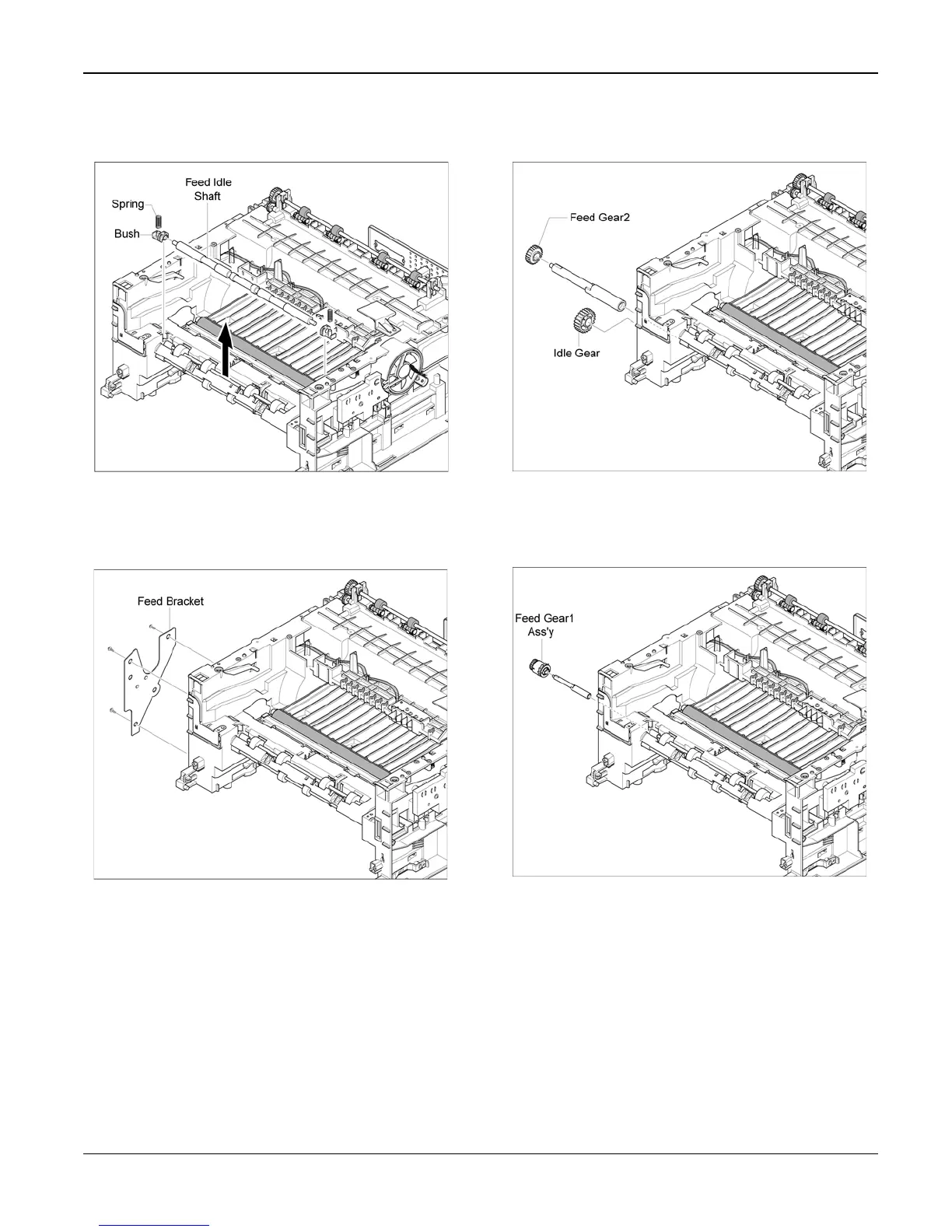

3. Remove the Feed Idle Bush and Feed
Idle Shaft, Figure 2.
Figure 2
4. Remove 3 screws then the Feed Bracket,
Figure 3.
Figure 3
5. Remove the Idle Gear 23 and Feed Gear
2, Figure 4.
Figure 4
6. Remove the Feed Gear 1 Assembly and
Feed Roller 1, Figure 5.
Figure 5
