4-16
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.9
Repairs

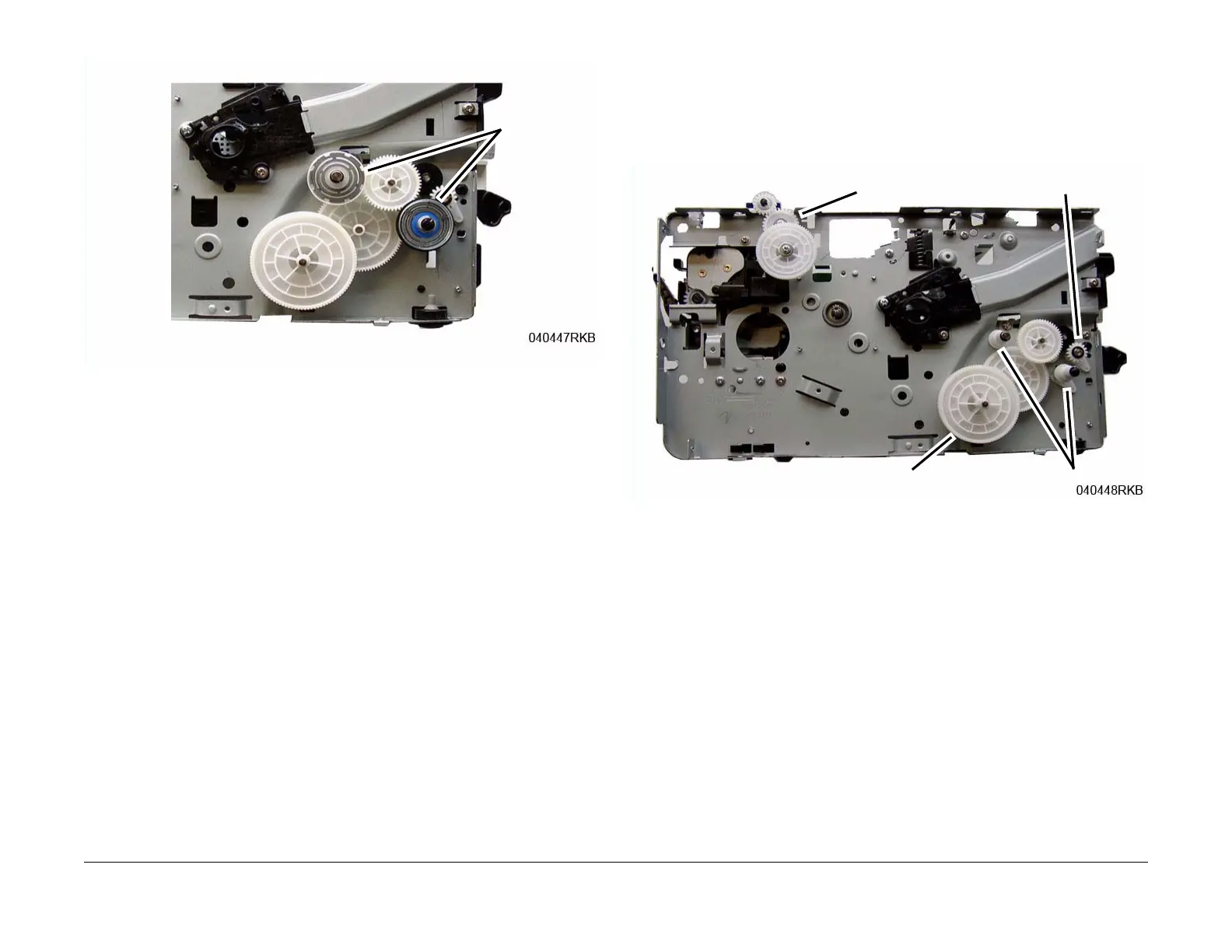

Figure 4 Feed and Registration Clutch Drive Gears
8. Remove the following (Figure 5):
Make note of the order that the Feed and Registration Drive Gears were removed so that
they may be re-installed correctly.
a. Feed and Registration Drive Gears, there is a Snap Ring on one gear.
b. Feed and Registration Clutch Bushings (2 Snap Rings).
c. Exit Drive Gears, (2 screws and a Latch).
Figure 5 Drive Gears and Bushings
Clutch Drive
Gears
Snap Ring
Exit Drive Gears
Feed & Registration Drive Gears
Clutch Bushings

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
