Xerox WorkCentre 3225 User Manual

June 2014
4-17
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.9
Repairs
9. Remove the following from the Left Frame (Figure 6):
a. Shaft Bushings (2), release the latches.
b. LSU Assembly Support (2 screws).
c. Paper Path Module screws (5).

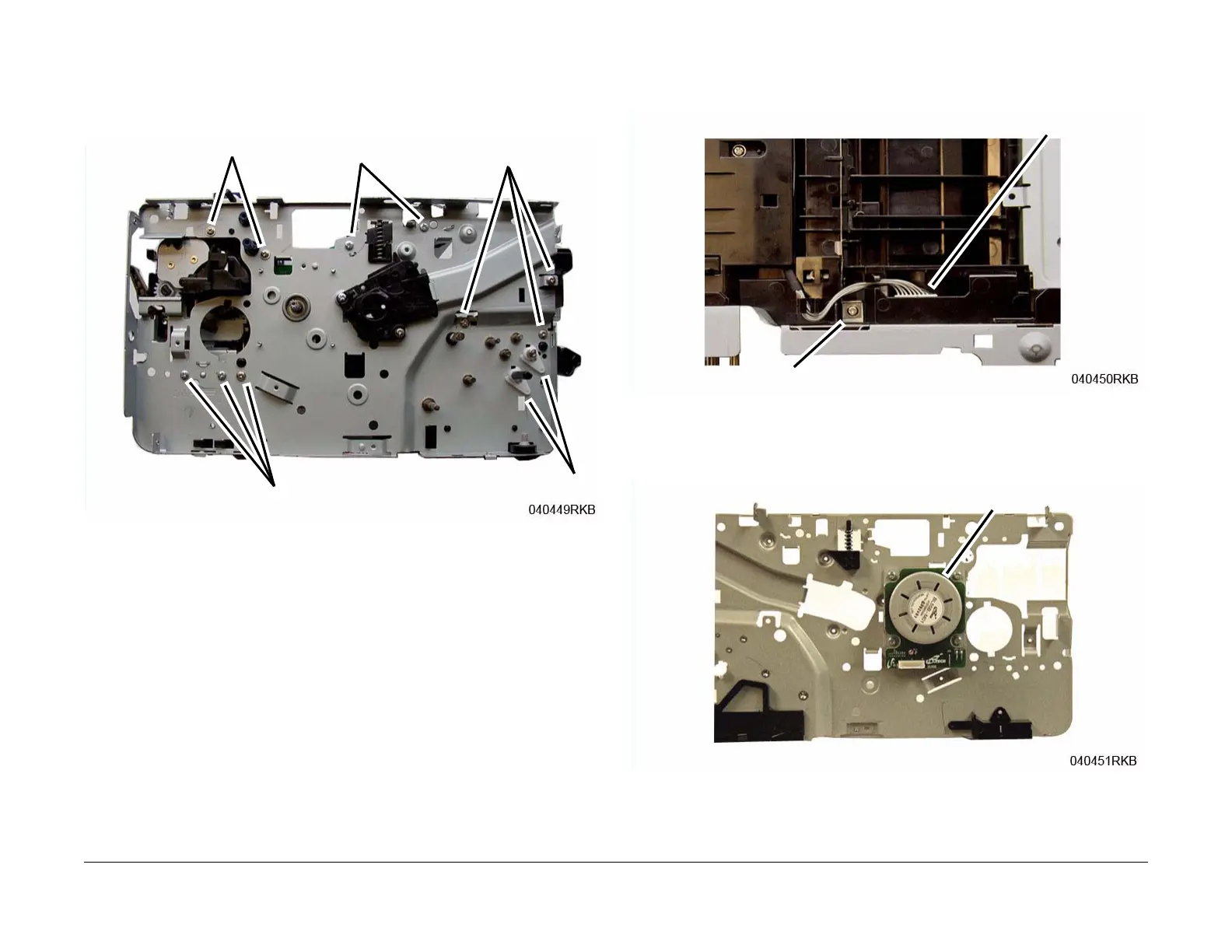

Figure 6 Left Frame Screw Removal
10. On the bottom of the Printer (Figure 7):
a. Disconnect the Drive Motor Connector.
b. Remove the screw (1) and the Ground Clip.
Figure 7 Drive Motor Connector & Ground Clip (Bottom View)
11. Remove the Left Frame screws (3) (Figure 6).
12. Remove the Drive Motor (4 screws) (Figure 8).
Figure 8 Drive Motor
Step 8b
Step 8c
Step 8c
Step 11
Step 8a
Connector
Screw
Drive Motor

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
