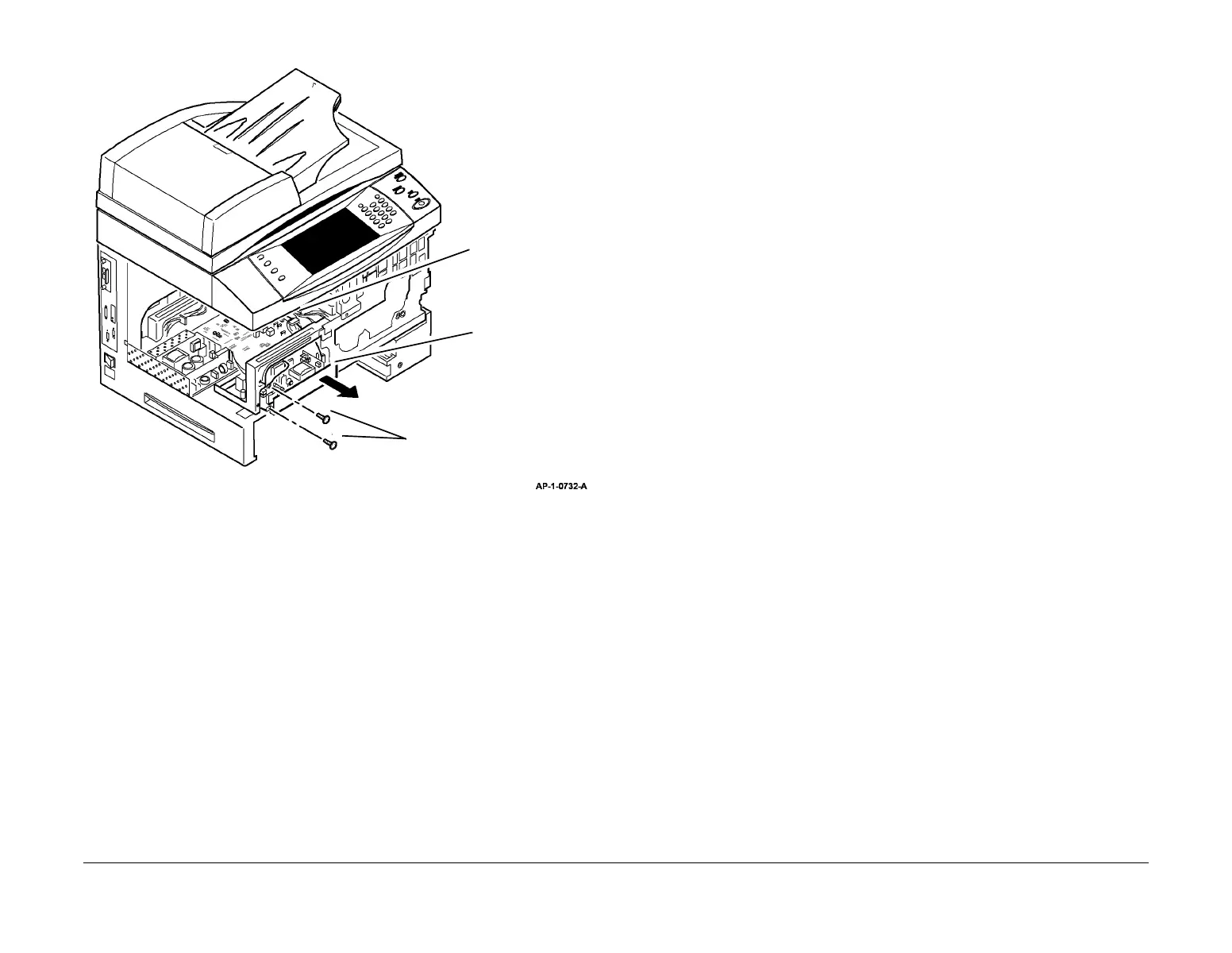

Figure 2 Power supply unit 2 removal
11. Remove power supply 2 from the support cage, PL 1.15 Item 10.
Replacement
Replacement is the reverse of the removal procedure.
REP 1.7 HVPS (4265)
Parts List on PL 1.15, PL 1.20
Removal
NOTE: This procedure should only be performed on the 4265. For the 4250/4260 procedure,
refer to the table of contents.
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
electrical outlet while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Power off the machine. Disconnect the power cord.
2. Remove the Exit Tray Assembly, PL 28.10 Item 1 or the finisher, REP 12.1.
3. Remove the Paper Exit Cover (PL 28.10 Item 4).
3
Remove power
supply unit 2.
1
Remove 2 screws.
2
Disconnect the
inline connector.
