Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 7.50
Parts List

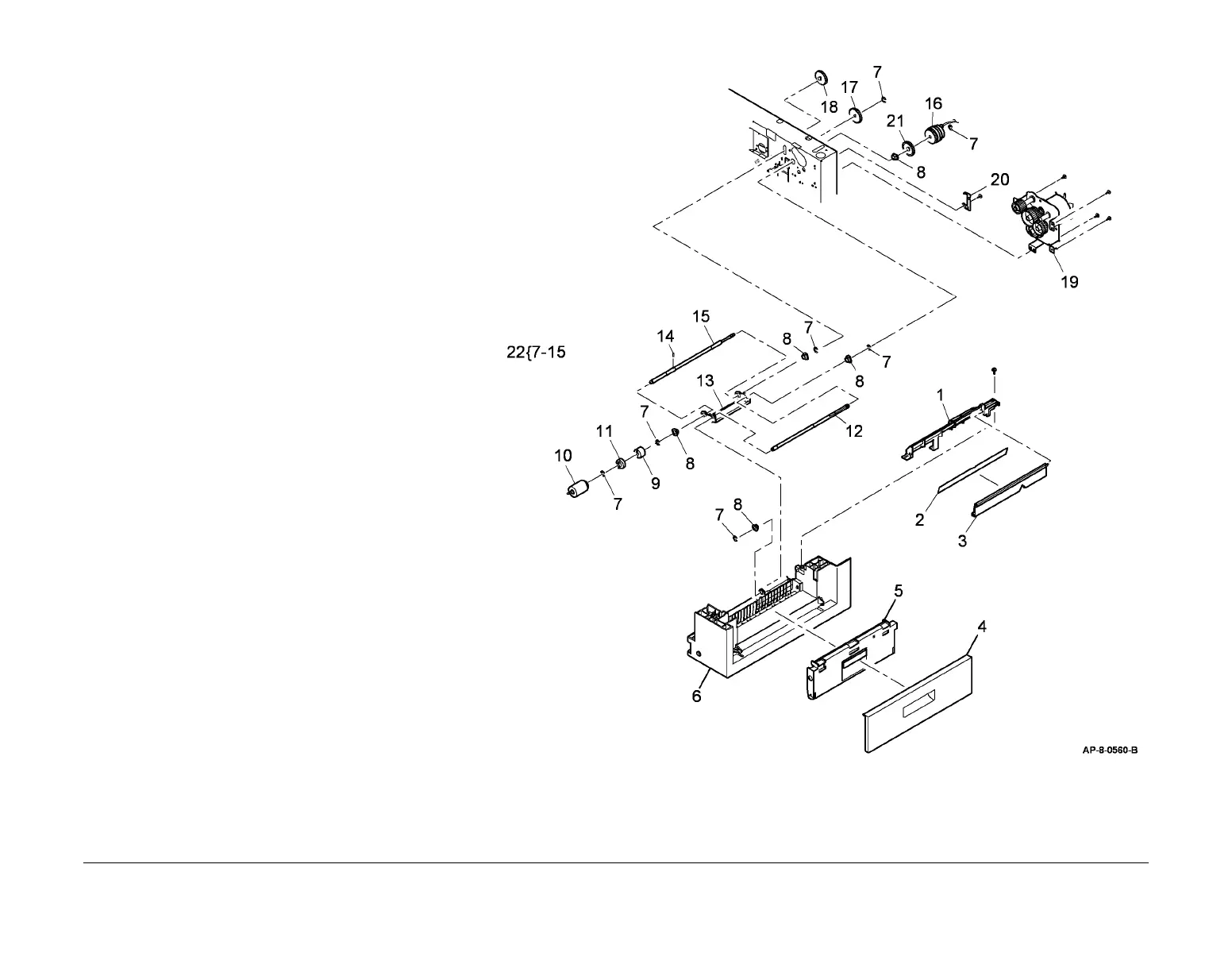

PL 7.50 HCF (2 of 5)
Item Part Description
1 – Retard assembly cover (P/O PL
7.45 Item 1)
2 032N00477 Mylar strip
3 – Paper guide (P/O PL 7.45 Item 1)
4 – Cover door (P/O PL 7.45 Item 1)
5 002N02579 Access door assembly
6 – Right hand base (P/O PL 7.45 Item
1)
7 – E-clip (Not Spared)
8 – Bearing (P/O PL 7.45 Item 1)
9 017N00259 Drive dog
10 022N02232 Retard roll assembly
11 022N02231 Drive dog coupling
12 – Drive shaft (P/O PL 7.45 Item 1)
13 – Retard bracket (P/O PL 7.45 Item
1)
14 006N01293 Pin
15 – Retard shaft (P/O PL 7.45 Item 1)
16 005N01085 Tray pickup clutch (CL08-830)
17 – Gear, paper transport assembly
(P/O PL 7.45 Item 1)
18 – Gear, tray feeder assembly (P/O PL
7.45 Item 1)
19 023N01160 Feed motor assembly
(MOT08-930)
20 – Ground strip (P/O PL 7.45 Item 1)
21 007N01498 Gear, retard assembly
22 022N02230 Retard assembly
