January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 7.60
Parts List

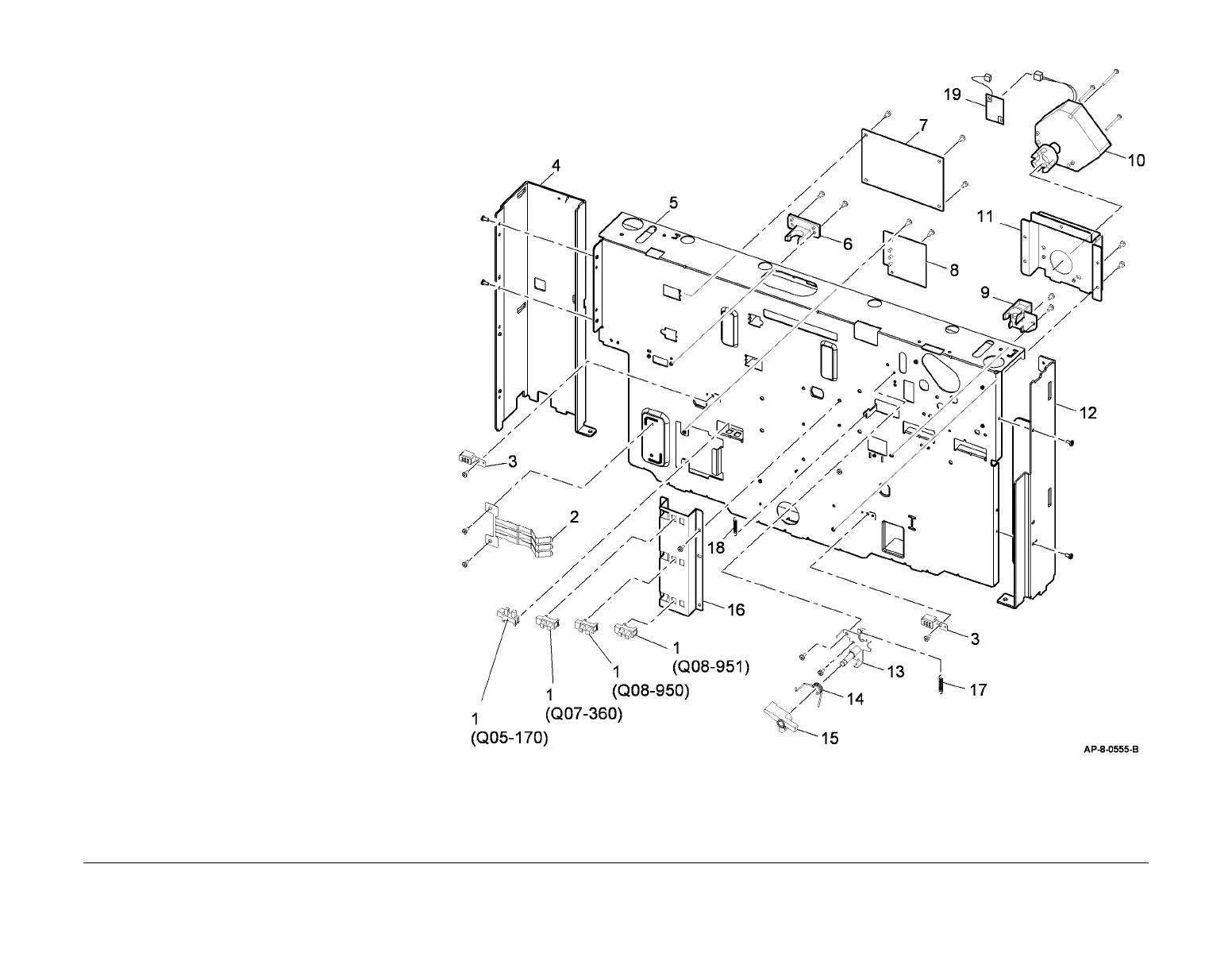

PL 7.60 HCF (4 of 5)
Item Part Description
1 130N01274 Tray home sensor (Q05-170),
paper low sensor (Q07-360), HCF
level sensor 2 (Q08-950), HCF
level sensor 3 (Q08-951)
2 – Leaf spring (P/O PL 7.45 Item 1)
3 – Ground strip (P/O PL 7.45 Item 1)
4 – Left plate (P/O PL 7.45 Item 1)
5– Frame (P/O PL 7.45 Item 1)
6 – Left clip (P/O PL 7.45 Item 1)
7 140N63148 HCF PWB
8 050N00539 Paper size detect PWB
9 – Right clip (P/O PL 7.45 Item 1)
10 127N07592 HCF elevating motor (MOT04-530)
11 – HCF elevating motor bracket (P/O
PL 7.45 Item 1)
12 – Right plate (P/O PL 7.45 Item 1)
13 – Link arm bracket (P/O PL 7.45 Item
1)
14 – Spring (P/O PL 7.45 Item 1)
15 – Feed head link arm (P/O PL 7.45
Item 1)
16 – Sensor bracket (P/O PL 7.45 Item
1)
17 009N01596 Spring
18 – Feed assembly spring (REF: PL
8.10 Item 16)
19 140N63395 PTC PWB
