Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 12.40
Parts List

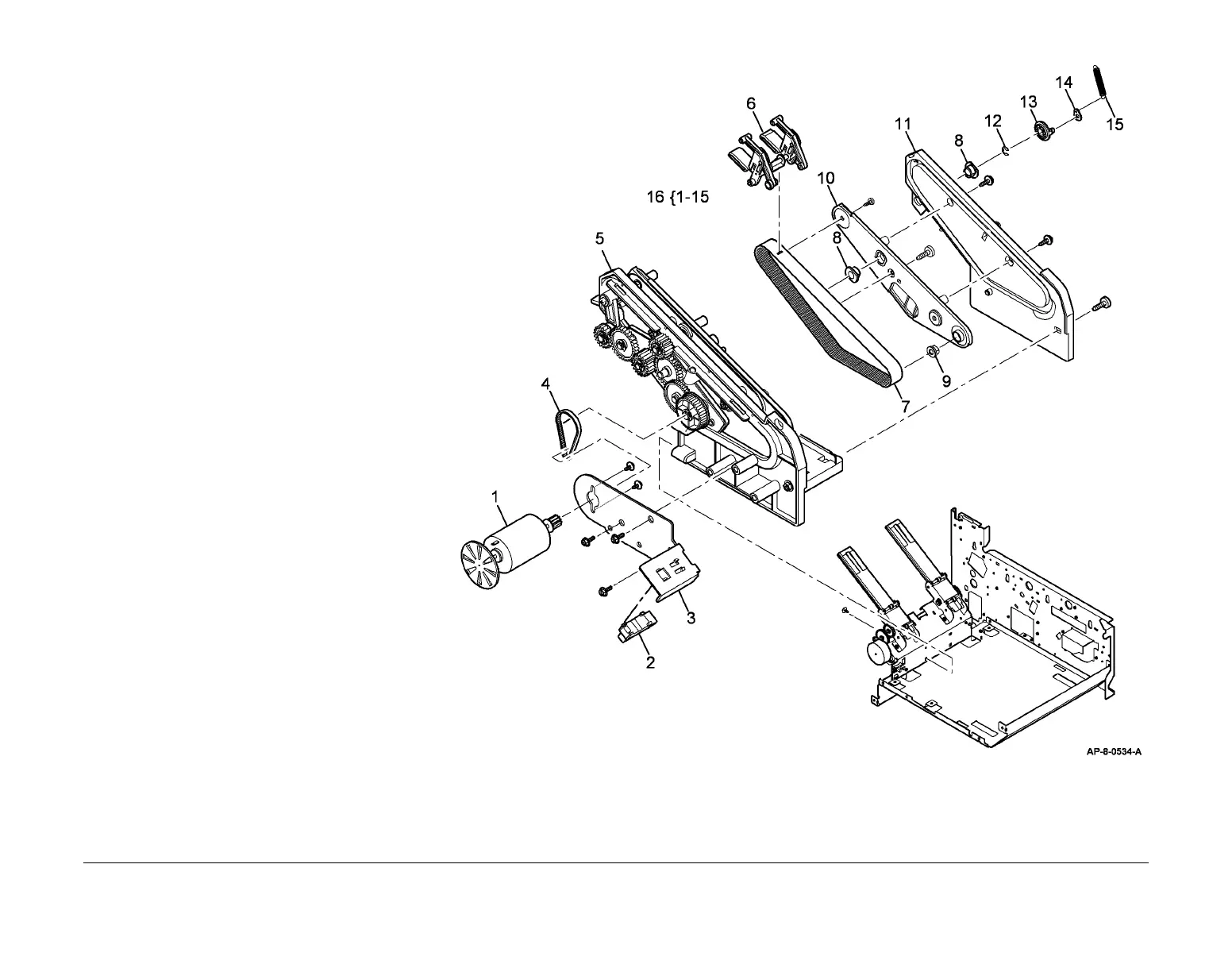

PL 12.40 Ejector Assembly
Item Part Description
1 127N07493 Ejector motor (MOT 12-500) (REP
12.7)
2 130N01274 Support finger home sensor (Q
12-825)
3 – Motor bracket (P/O PL 12.40 Item
16)
4 – Drive belt (P/O PL 12.40 Item 16)
5 – Eject unit (P/O PL 12.40 Item 16)
6 – Document grip assembly (P/O PL
12.40 Item 16)
7 – Ejector belt (P/O PL 12.40 Item 16)
8 – Bearing (P/O PL 12.40 Item 16)
9 – Bearing (P/O PL 12.40 Item 16)
10 – Ejector belt rear cover (P/O PL
12.40 Item 16)
11 – Ejector rear frame (P/O PL 12.40
Item 16)
12 – E-Clip (Not Spared)
13 – Cam (P/O PL 12.40 Item 16)
14 – Link (P/O PL 12.40 Item 16)
15 – Spring (P/O PL 12.40 Item 16)
16 019N00924 Ejector assembly (REP 12.7)
