Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 7.45
Parts List

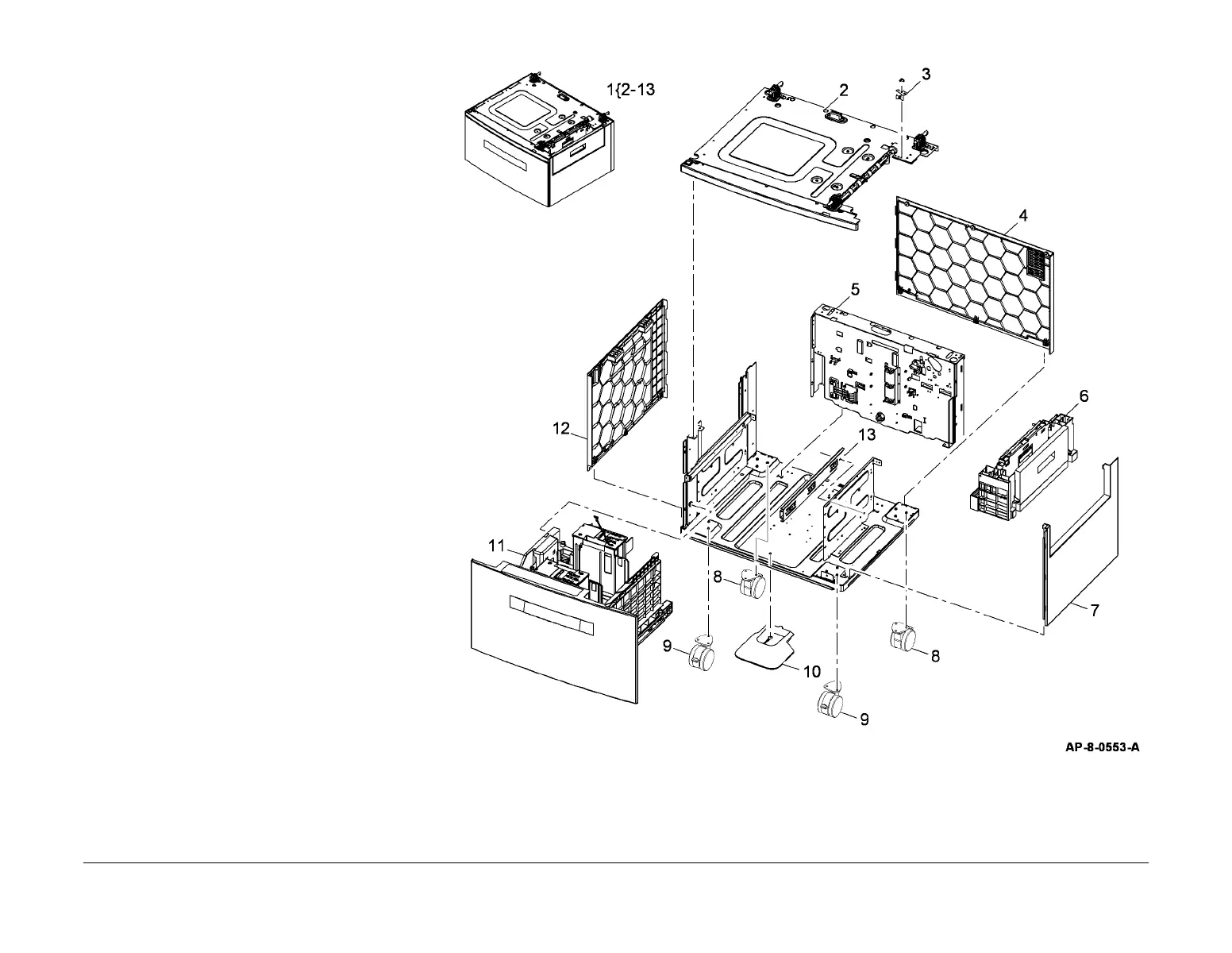

PL 7.45 HCF (1 of 5)
Item Part Description
1 022N02382 HCF assembly
2 – Top frame assembly (P/O PL 7.45
Item 1)
3 – Ground clip (P/O PL 7.45 Item 1)
4 – Rear cover (P/O PL 7.45 Item 1)
5 – Rear frame assembly (REF: PL
7.60)
6 – Jam release assembly (REF: PL
7.50)
7 – Right cover (P/O PL 7.45 Item 1)
8 017N00283 Rear caster
9 017N00282 Front caster
10 – Stability foot (P/O PL 7.45 Item 1)
11 – HCF tray (REF: PL 7.55 Item 1)
12 – Left cover (P/O PL 7.45 Item 1)
13 – Slide assembly (P/O PL 7.45 Item
1)
