Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 7.20
Parts List

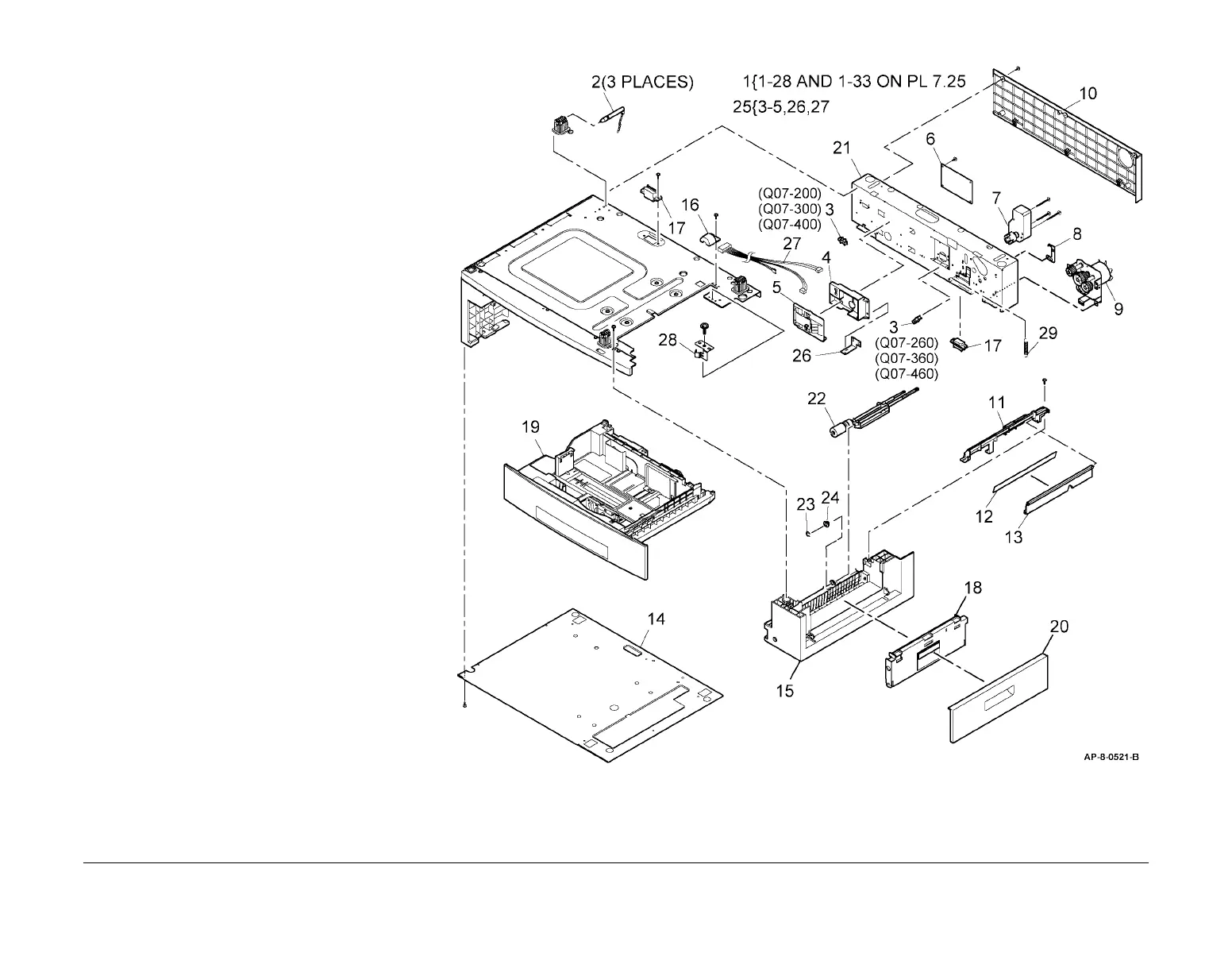

PL 7.20 Trays 2 - 4 Frame Assembly (1
of 2)
Item Part Description
1 062N00272 Tray assembly
2 – Locking pin (P/O PL 7.20 Item 1)
3 130N01274 Tray home position sensor
(Q07-200 tray 2), (Q07-300 tray 3),
(Q07-400 tray 4). Paper low sensor
(Q07-260 tray 2), (Q07-360 tray 3),
(Q07-460 tray 4)
4 – Housing (P/O PL 7.20 Item 1)
5 130N01461 Paper size detect PWB (REP 7.4)
6 140N63148 Tray PWB
7 127N07488 Tray elevating motor (MOT04-520
tray 2), (MOT04-530 tray 3),
(MOT04-540 tray 4)
8 – Ground strip (P/O PL 7.20 Item 1)
9 023N01160 Feed motor assembly
10 – Rear cover (P/O PL 7.20 Item 1)
11 – Retard assembly cover (P/O PL
7.20 Item 1)
12 032N00477 Mylar strip
13 – Paper guide (P/O PL 7.20 Item 1)
14 – Base cover (P/O PL 7.20 Item 1)
15 – Right hand base (P/O PL 7.20 Item
1)
16 – Gear cover (P/O PL 7.20 Item 1)
17 152N11714 Tray connector
18 002N02579 Access door assembly
19 – Cassette (REF: PL 7.10)
20 – Cover door (P/O PL 7.20 Item 1)
21 – Rear panel (P/O PL 7.20 Item 1)
22 – Retard assembly (REF: PL 7.25
Item 1)
23 – E-Clip (Not Spared)
24 – Bearing (P/O PL 7.20 Item 1)
25 130N01464 Paper size detect assembly (REP
7.3)
26 – Grounding strip (P/O PL 7.20 Item
1)
27 – Harness (P/O PL 7.20 Item 1)
28 002N02580 Grounding strip
29 – Feed assembly spring (REF: PL
8.10 Item 16)
