PL 7.10
Parts List

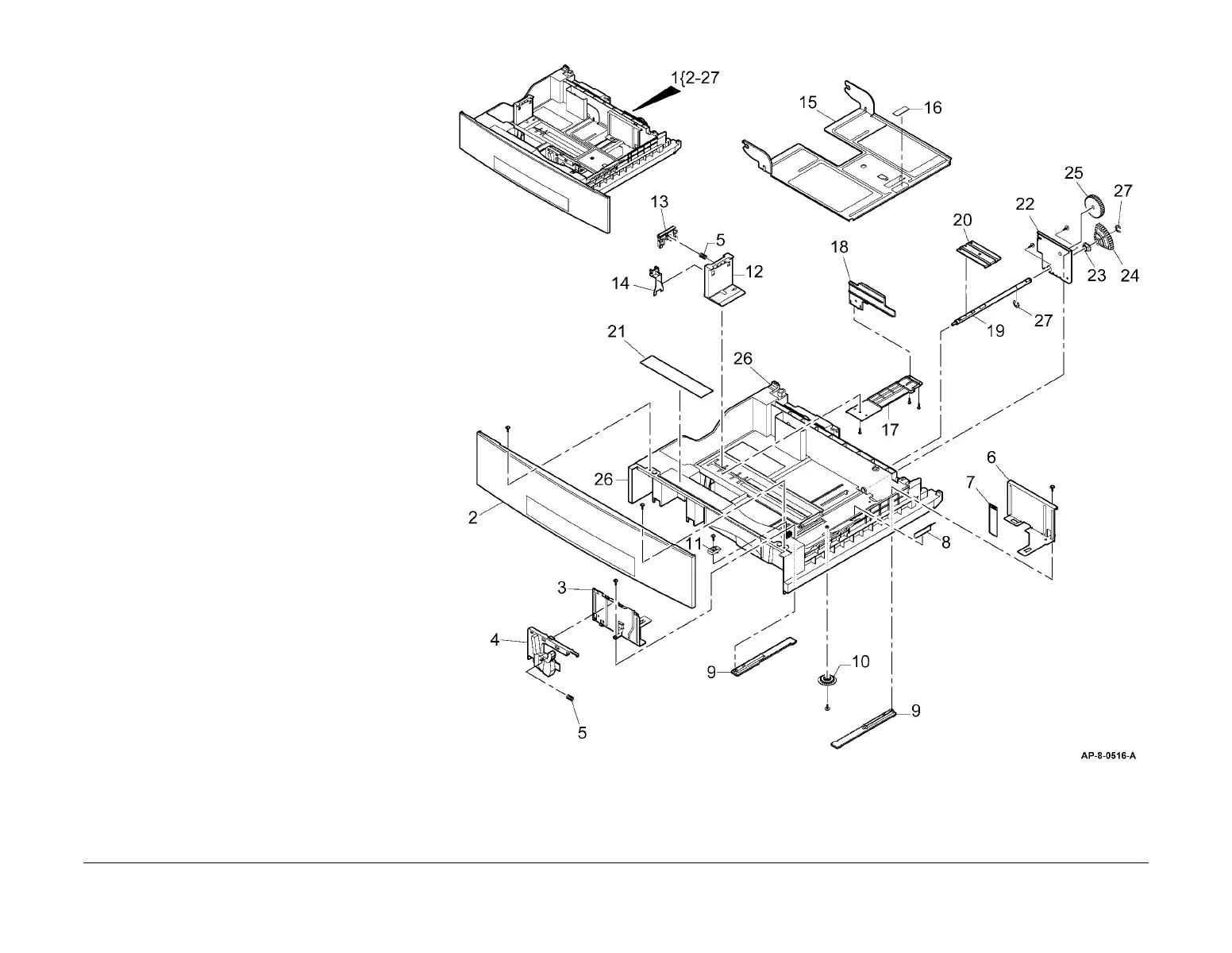

PL 7.10 Tray 1 - 4 Cassette Assembly
Item Part Description
1 050N00488 Cassette assembly
2 – Cassette cover (P/O PL 7.10 Item
1)
3 038N00495 Left side paper guide
4 003N01005 Latch
5 009N01615 Latch spring
6 – Right side paper guide (P/O PL
7.10 Item 1)
7 091N80243 MAX fill label
8 038N00496 Paper guide
9 – Rack gear (P/O PL 7.10 Item 1)
10 007N01526 Pinion gear 24T
11 – Knock-up plate stopper (P/O PL
7.10 Item 1)
12 032N00475 Rear paper guide
13 003N01011 Latch lever
14 032N00476 Latch
15 – Knock-up plate (P/O PL 7.10 Item
1)
16 019N00796 Pad
17 095N00381 Actuator arm
18 – Paper size actuator (P/O PL 7.10
Item 1)
19 – Shaft (P/O PL 7.10 Item 1)
20 – Lever (P/O PL 7.10 Item 1)
21 091N80244 Paper loading label
22 – Bracket (P/O PL 7.10 Item 1)
23 016N00293 Bush
24 007N01527 Elevator gear
25 007N01528 Drive gear
26 – Casette frame (P/O PL 7.10 Item 1)
27 – E-Clip (Not Spared)
