PL 8.10
Parts List

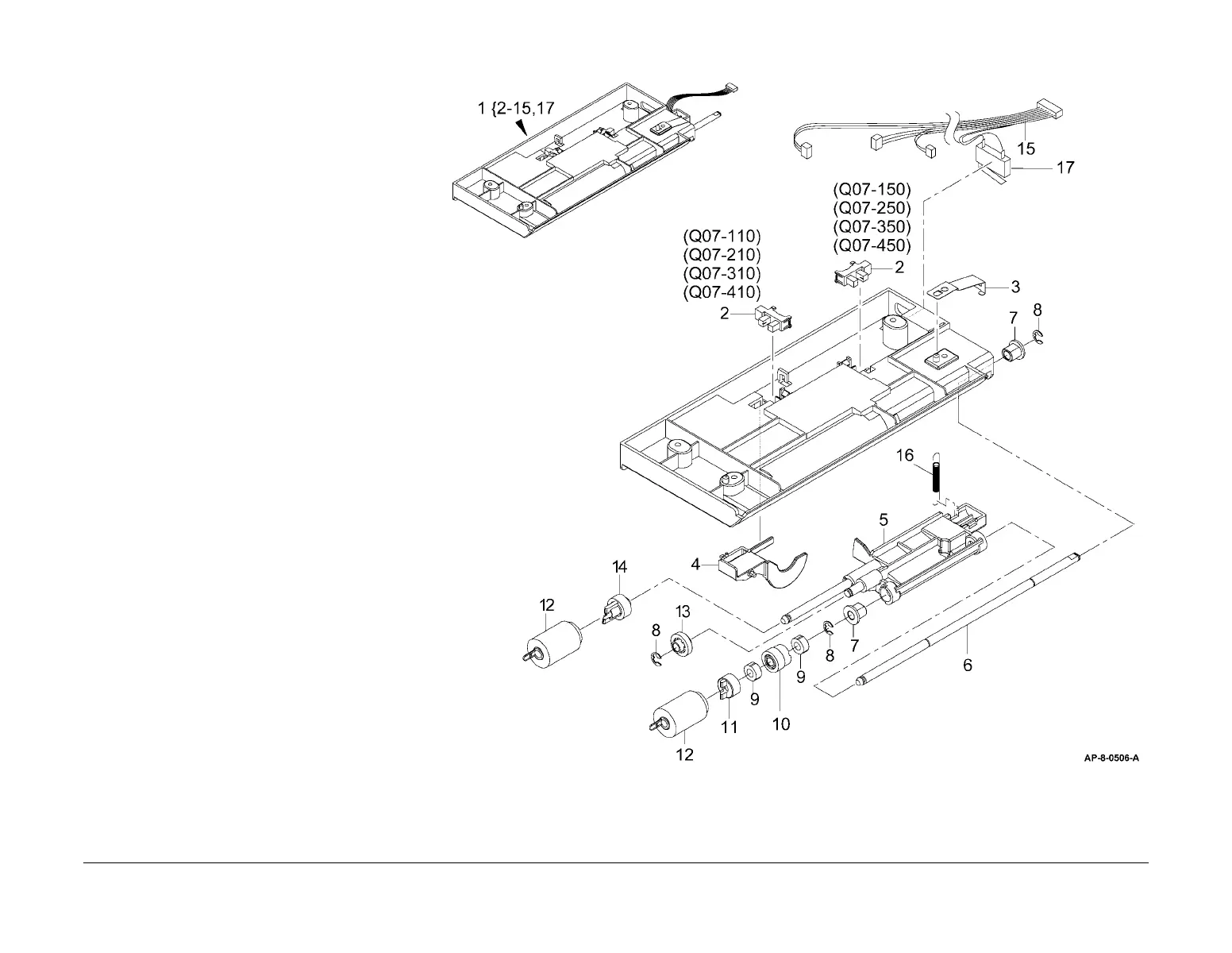

PL 8.10 Tray 1-4 & HCF Feed
Assembly
Item Part Description
1 130N01562 HCF tray feed assembly
(4250/4260/4265)
– 130N01559 Tray feed assembly
(4250/4260/4265) (See Note 2)
– 130N01459 Tray feed assembly (4150) (See
Note 2)
2 130N01274 Paper empty sensor (Q07-110
tray1), (Q07-210 tray 2), (Q07-310
tray 3), (Q07-410 tray 4), Stack
height sensor (Q07-150 tray 1),
(Q07-250 tray 2), (Q07-350 tray
3/HCF), (Q07-450 tray 4). (See
Note 2)
3 – Ground strip (P/O PL 8.10 Item 1)
4 – Actuator (P/O PL 8.10 Item 1)
5 – Feed head (P/O PL 8.10 Item 1)
6 – Feed roll shaft (P/O PL 8.10 Item 1)
7 – Bearing (P/O PL 8.10 Item 1)
8 – E-Clip (Not Spared)
9 005N01094 Clutch
10 007N01520 Feed roll gear
11 005N01087 Feed roll drive dog
12 022N02232 Roll assembly (See Note 1 and 2,
Need to order 3 Roll
Assemblies(One roll contained in
each bag))
13 007N01556 Intermediate drive gear
14 007N01522 Nudger roll gear
15 – Harness (P/O PL 8.10 Item 1)
16 009N01594 Spring
17 – Tray up limit switch (P/O PL 8.10
Item 1) (REP 7.2)
NOTE: 1. To reset HFSI count, go to GP 16. 2. Tray 1, REP
7.1. Trays 2, 3 and 4 REP 7.7. HCF REP 7.5. 3. Roll Assy
shipped one Roll per bag. CSE must order three: Nudger
Roll, Feed Roll, and Retard Roll(PL 7.15, Item 20).
