January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 8.15
Parts List

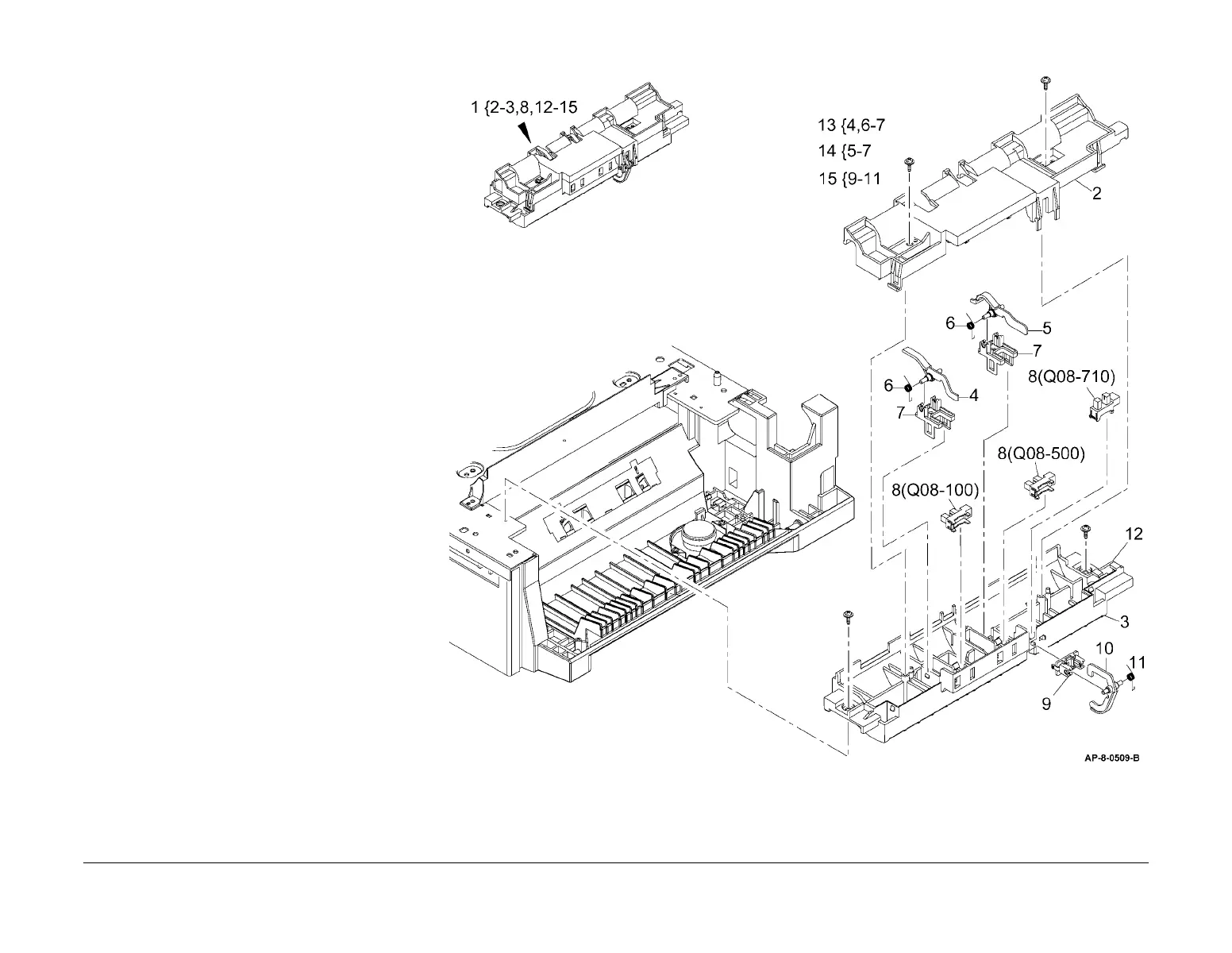

PL 8.15 Registration Guide Assembly
Item Part Description
1 – Registration guide assembly (Not
Spared)
2 015N00589 Registration roll cover (REP 8.2)
3 – Registration guide base (Not
Spared)
4 – Feed sensor actuator (P/O PL 8.15
Item 13) (REP 8.2)
5 – Registration sensor actuator (P/O
PL 8.15 Item 14) (REP 8.2)
6 – Actuator spring (P/O PL 8.15 Item
13) & (P/O PL 8.15 Item 14) (REP
8.2)
7 – Registration actuator cradle (P/O
PL 8.15 Item 13, PL 8.15 Item 14)
(REP 8.2)
8 130N01274 Registration sensor (Q08-500),
Feed sensor (Q08-100), Duplex
jam 2 sensor (Q08-710) (REP 8.2)
9 – Cradle (P/O PL 8.15 Item 15) (REP
8.2)
10 – Duplex jam sensor actuator (P/O
PL 8.15 Item 15) (REP 8.2)
11 009N01513 Spring (REP 8.2)
12 – Registration guide housing (P/O PL
8.15 Item 1)
13 022N02278 Feed sensor actuator assembly
(REP 8.2)
14 120N00501 Registration sensor actuator
assembly (REP 8.2)
15 120N00502 Duplex jam 2 sensor actuator
assembly (4150) (REP 8.2)
– 120N00529 Duplex jam 2 sensor actuator
assembly (4250/4260) (REP 8.2)
